760255090 | PPL-SP-16LC-OM4-PT-BEU-ANT

Base Product: PROPEL-SPLICE-CASSETTES

  • Available in:
  • Europe

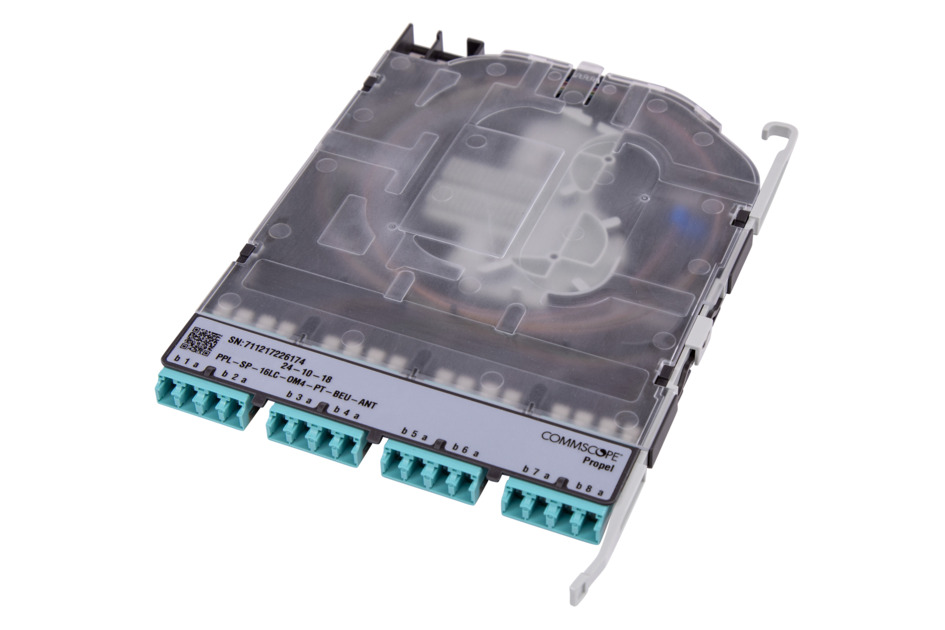

Propel Multimode Splice Cassette, 16LC with internal shutters, OM4 fiber pigtails, Method B Enhanced ULL, ANT Splice Protector

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
  • Can be installed and removed from front or rear of panel
  • This component requires 4 of the 12 lanes on the Propel Panel blade
  • Compatible with either 250 µm or 900 µm incoming fiber (inactive)

Product Classification

Regional Availability Europe
Portfolio CommScope®
Product Type Fiber cassette with pigtails
Product Brand Propel
Product Series PPL

General Specifications

Color, front Aqua
Interface, front LC/UPC
Interface, rear Stranded pigtail
Polarity Method B Enhanced (ULL)
Shuttered Yes
Total Fibers, quantity 16

Dimensions

Height 67.310 mm | 2.65 in
Width 131.013 mm | 5.158 in

Optical Specifications

Fiber Mode Multimode
Fiber Type G.657.A2
Insertion Loss, maximum 0.15 dB

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard UL

Packaging and Weights

Included Single Fusion Splice Protection Sleeves
Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
