760251859 | FOSC650-NNN-NT-0-S12V

Base Product: FOSC-650

Available in:
Latin America
North America

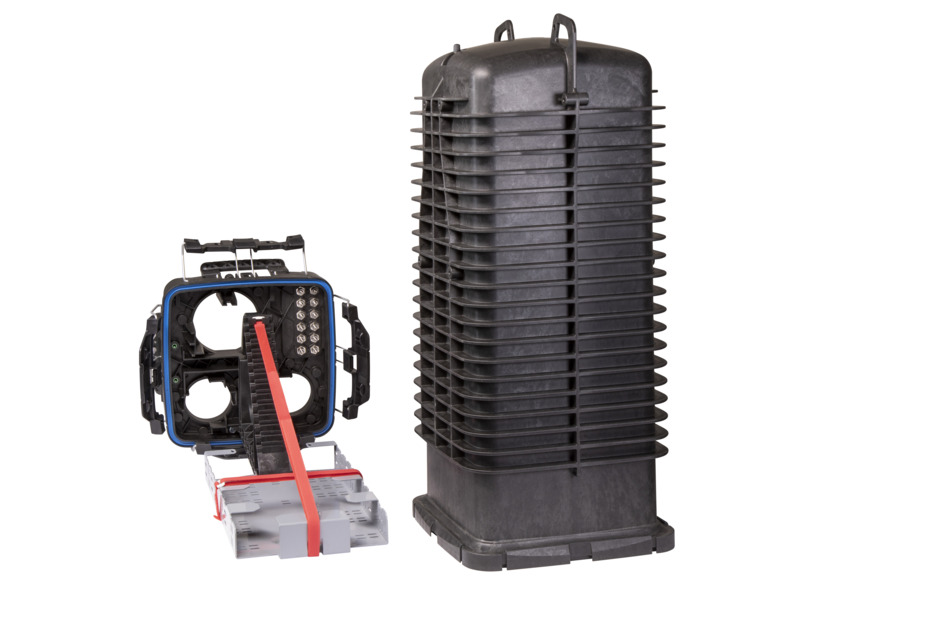

FOSC650 Fiber Optic Splice Closure, no tray, no gel sealing, includes standard basket, 12 grounding lugs and valve, Sealing and cover for unused ports ordered separately.

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Single-ended base with four-latches dome design and reliable cable attachment system
There are 3 cable segments: 2 for use with the small gel seal blocks/entrance ports and 1 for use with the large gel seal blocks/entrance ports
Fully removable base for easy cable access during installation and provisioning
Superior gel sealing technology incorporated in interchangeable and fully wrap around gel segments
Compatible with a wide range of fiber cable sizes and types

Specifications

Product classification

Regional Availability	Latin America \| North America
Product Type	Single-ended, square fiber closure
Product Brand	FOSC®

General Specifications

Cable Entry Drop Port Style	Gel block
Cable Entry Main Port Style	Gel block
Cable Ports Quantity, total	3 multi-out ports (12 cables)
Cable Sealing Type	Compressed gel
Closure Sealing Type	Over-centered latches with rubber gasket
Closure Style	Single-ended
Color	Black
Flash Test Valve	Pre-installed
Ground Feed-through	None
Mounting	Pole \| Strand \| Wall
Network Area Type	Feeder \| Trunk
Splice Tray Included, quantity	0
Splice Tray Type Included	No trays
Splicing Capacity, Mass Fusion, maximum	6912
Splicing Capacity, Single Fusion, maximum	3456
Splicing Capacity, Single Splice, 12 fibers, maximum	3456
Splicing Capacity, Single Splice, 6 fibers, maximum	180
Splicing Type, Supported	Mass fusion \| Single fusion

Dimensions

Height	345.44 mm \| 13.6 in
Width	345.44 mm \| 13.6 in
Length	900.43 mm \| 35.45 in
Length, with trigger	1050.29 mm \| 41.35 in
Main Cable Diameter, maximum	40.64 mm \| 1.6 in

Dimension Drawing

Click on image to enlarge.

Port Configuration

Click on image to enlarge.

Material Specifications

Material Type

Rugged polymer

Environmental Specifications

Environmental Space	Below ground \| Buried
Qualification Standards	IEC 60529, IP68 + 5 m waterhead

Packaging and Weights

Packaging quantity	1
Packaging Type	Box \| Carton
Weight, net	11.79 kg \| 25.993 lb

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
