FL2-ADAPTER-PACKS

Base Product

Available in:
North America

FL2000 Fiber Optic Adapter-pack

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Representative Image

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of FL2-ADAPTER-PACKS by selecting options

Features and Benefits

All FL2000 panels accommodate 6pak adapters. 6paks are available in all connector styles and can be ordered as needed. CommScope’s removable angled retainers allow easy access for single fiber maintenance. Two types of FL2 6pack adapter plates are offered:

6pak Adapter Plates

Completely interchangeable between FL2000 panel, FL1000 rack and wall box products
Can be ordered with all standard types of adapters and connectors
Feature CommScope’s removable angled retainers which provide superior fiber management
No tools required to install into FL2000 and FL1000 products

6pak Adapter Plates with Pigtails

Can be purchased and installed as growth necessitates
Available with preterminated three- or five-meter pigtails
Pigtails consist of a single outer jacket containing six color-coded 900 μm fibers
One end of pigtail terminated with chosen connector style and installed into the 6pak adapters
Saves installation time

FL2000 is a multi-purpose modular solution ideal for cabinet, rack, wall mount or medium size frame applications, ideal for small to medium size fiber counts
FL2000 adapter packs can be ordered with adapters only or with pre-terminated three- or five-meter pigtails

Specifications

Product classification

Regional Availability	North America
Portfolio	CommScope®
Product Type	Fiber adapter pack \| Fiber adapter pack with pigtails \| Fiber adapter pack, blank
Product Series	FL2000

General Specifications

Application	For use with FL2 panels
Color, front	Putty white
Interface	LC/APC \| LC/UPC \| SC/APC \| SC/UPC

Dimensions

Height	27.94 mm \| 1.1 in
Width	149.86 mm \| 5.9 in

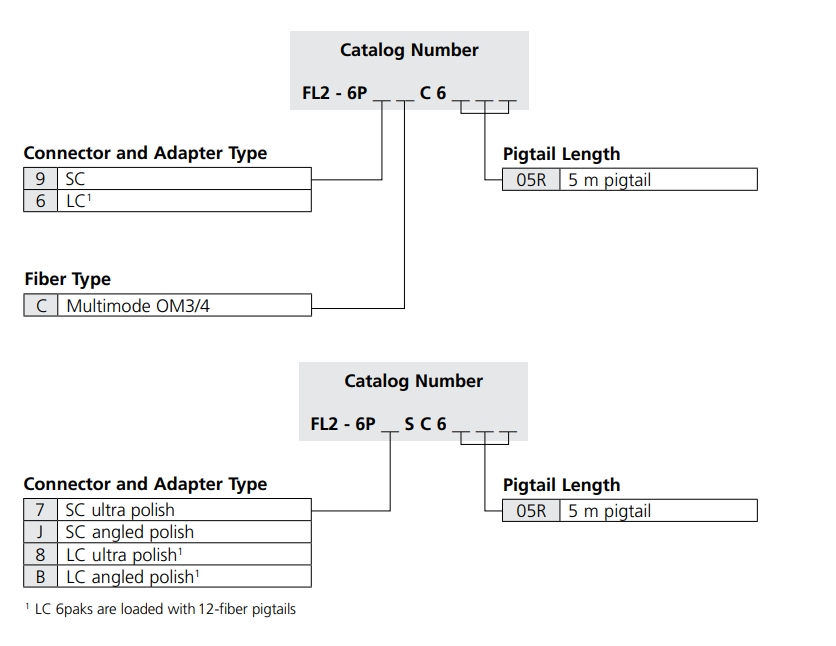

Ordering Tree

Click on image to enlarge.

Optical Specifications

Fiber Mode

Multimode | Singlemode

Packaging and Weights

Packaging quantity

Product classification

Regional Availability	North America
Portfolio	CommScope®
Product Type	Fiber adapter pack \| Fiber adapter pack with pigtails \| Fiber adapter pack, blank
Product Series	FL2000
