This product was discontinued on: October 31, 2022

For other alternatives, please contact us for more information.

1 Replacement products available
  • 760251051 | EPX-4U-PNL-ENC-FX
    EPX 4U fixed panel, accepts (12) LGX/PNL style splice cassettes, modules or panels, providing up to 144 duplex LC ports

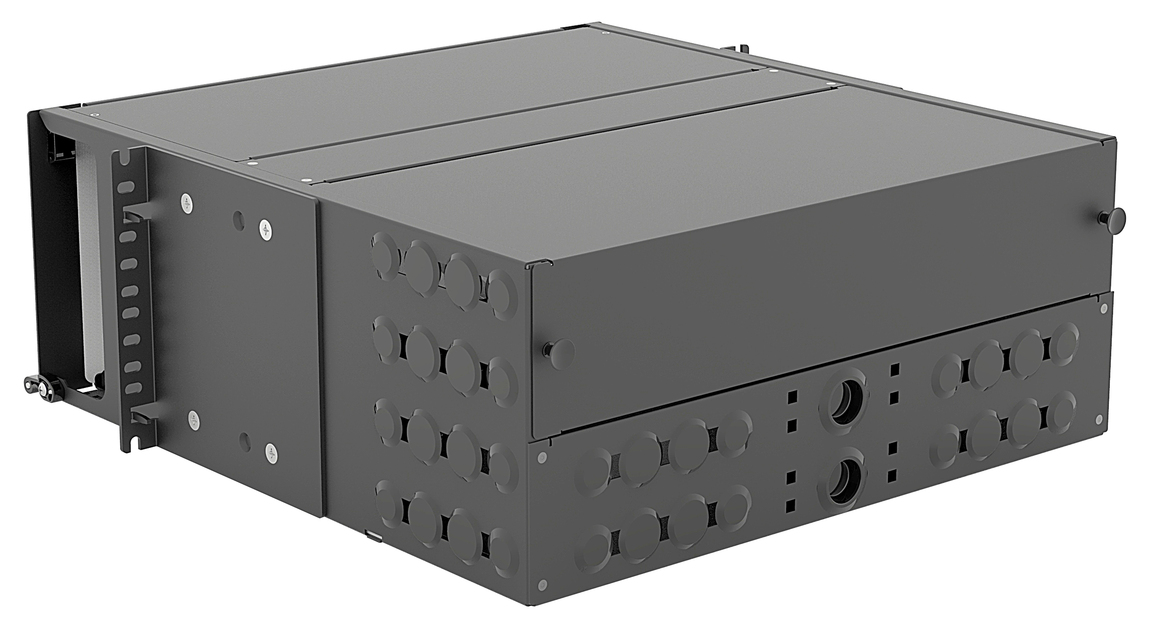

760231498 | SD-4U-FX

Base Product: SD-PANELS

Standard Density 4U fixed Panel, accepts (12) LGX/1000 style footprint modules or panels, providing up to 144 duplex LC ports

Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Portfolio CommScope®
Product Type Fiber patch panel
Product Series SD

General Specifications

Application Accepts twelve LGX/1000 footprint panels/cassettes
Color Black
Interface, front Unloaded
Rack Units 4
Shelf Movement Fixed
Total Ports, quantity 0

Dimensions

Height 177.8 mm | 7 in
Width 482.6 mm | 19 in
Depth 485.14 mm | 19.1 in

Material Specifications

Material Type Acrylonitrile butadiene styrene (ABS) | Polycarbonate (PC) | Steel

Environmental Specifications

Flammability Rating UL 94 V-0

Packaging and Weights

Packaging quantity 1
Weight, net 9.299 kg | 20.5 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
