760256133 | PPL-DM-12AP-12LC-SM-AF

Base Product: PROPEL-MODULES

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

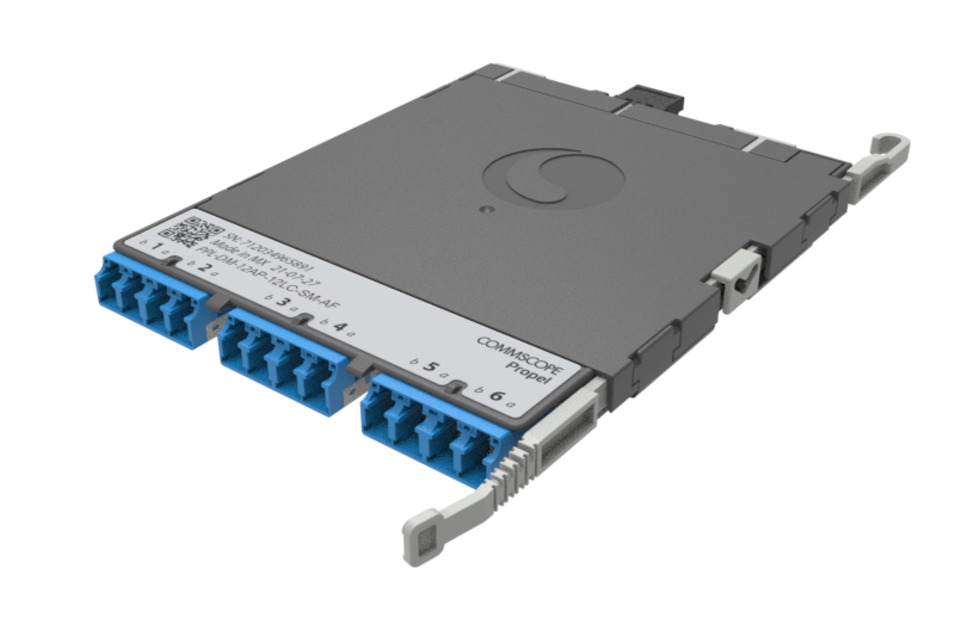

Propel ULL Singlemode MPO-12 Distribution Module, 6 duplex LC to 1X12f MPO/APC pinned, Method A Pairs Flipped

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Ultra-low loss (ULL) with Method A polarity
  • Can be installed and removed from front or rear of panel
  • Serialized QR code provides easy access to factory optical test results
  • This component requires 3 of the 12 lanes on the Propel Panel blade

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber module
Product Brand Propel
Product Series PPL

General Specifications

Functionality Breakout
Color, front Blue
Color, rear Black
Interface, front LC/UPC
Interface Feature, front Internal shutters
Interface, rear MPO
Interface Feature, rear Internal shutters | Key up/down | MPO Pinned | Standard
Polarity Method A | Pairs, flipped
Total Fibers, quantity 12
Total Ports, quantity, front 6
Total Ports, quantity, rear 1

Dimensions

Height 11 mm | 0.433 in
Width 98 mm | 3.858 in
Depth 170 mm | 6.693 in

Optical Specifications

Fiber Mode Singlemode
Fiber Type OS2
Insertion Loss, maximum 0.6 dB

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard CE | CSA | UL | UL 62368

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ROHS Compliant
UK-ROHS Compliant
