NG4-MMD7E0L000

Base Product: NG4-MODULES

  • Available in:
  • Latin America
  • North America

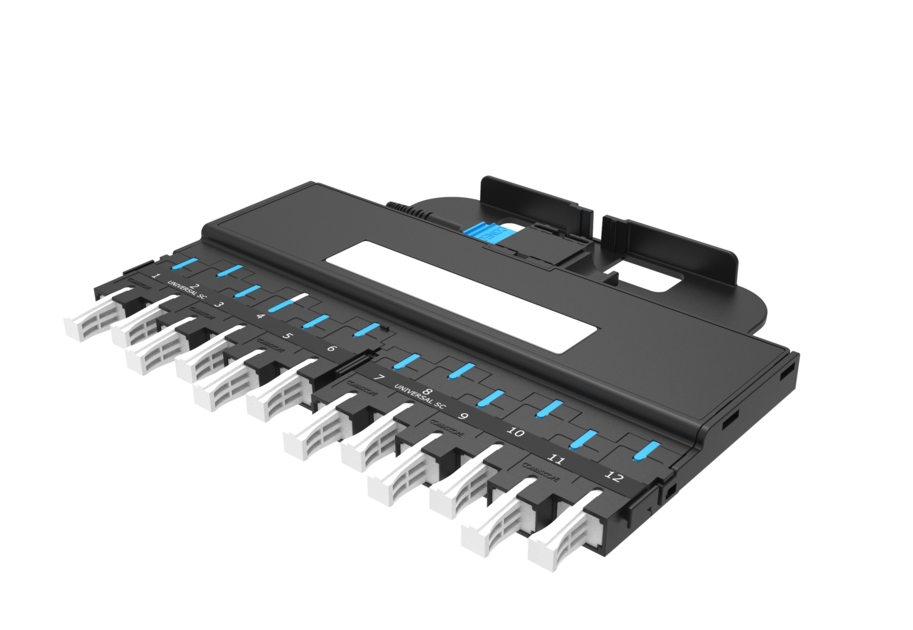

NG4access® MPO Module, singlemode, SC/UPC-MPO 12 fiber, left exit (for MPO module)

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Features and Benefits
  • Offers the same craft-friendly interface for LC and SC connectors as the cabled module
  • Allow installers to connect an MPO trunk cable to turn up services in rapid installation applications

Product classification

Regional Availability Latin America | North America
Portfolio CommScope®
Product Type Fiber module
Product Brand NG4access®
Product Series NG4

General Specifications

Functionality Breakout
Application NG4 MPO module
Adapter Color Blue
Adapters, quantity, front 12
Body Style Simplex
Color, front Black
Color, housing Black
Color, rear Black
Interface, front SC/UPC
Interface, rear MPO
Interface Feature, rear Standard
Polarity Method A
Total Fibers, quantity 12
Total Ports, quantity, front 12

Dimensions

Height 13.21 mm | 0.52 in
Width 159.77 mm | 6.29 in
Depth 130.3 mm | 5.13 in

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2

Environmental Specifications

Operating Temperature -5 °C to +40 °C (+23 °F to +104 °F)
Storage Temperature -5 °C to +50 °C (+23 °F to +122 °F)
Relative Humidity Up to 85%, non-condensing

Packaging and Weights

Packaging quantity 1
Packaging Type Bag | Carton

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
