760254285 | CPCX-12
- Available in:
- North America

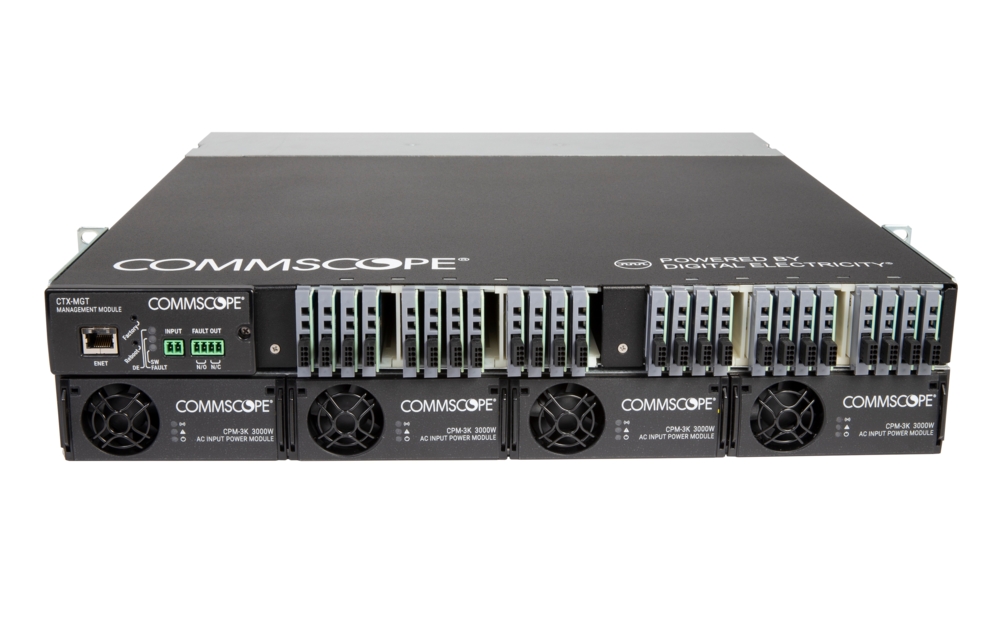

Constellation™ Power Transmitter Chassis, capable of energizing up to ten enclosures with management module that provides remote access/monitoring/control of the Constellation power delivery system
Features and Benefits
- Delivers 10x power and 5x distance over traditional systems
- Modular system for reliability and expansion
- Hot swappable transmitters and power supplies
- TCP/IP Lan interface w/SNMP support
- Commscope GUI for management and support
Specifications
Product classification
| Regional Availability | North America |
| Portfolio | SYSTIMAX® |
| Product Type | Power source |
| Product Brand | Constellation™ |
General Specifications
| Color | Black |
| Rack Units | 2 |
| Standards | CISPR 32 IEC/EN 55032 | EN 300 386 v2.1.1 | EN 50121-4 | FCC Part 15B Class A |
Dimensions
| Height | 88.9 mm | 3.5 in |
| Width | 449.35 mm | 17.691 in |
| Depth | 493.7 mm | 19.437 in |
| Length | 493.7 m | 1619.751 ft |
Electrical Specifications
| Input Voltage | 100–277 Vac |
| Output Current, maximum | 16 A |
| Output Power, maximum | 12 kW |
| Output Voltage | 336 Vdc |
Material Specifications
| Material Type | Powder coated steel |
Environmental Specifications
| Operating Temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Storage Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Relative Humidity | 5%–95%, non-condensing |
| Environmental Space | Indoor |
| Safety Standard | IEC 62368-1 |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Product classification
| Regional Availability | North America |
| Portfolio | SYSTIMAX® |
| Product Type | Power source |
| Product Brand | Constellation™ |
General Specifications
| Color | Black |
| Rack Units | 2 |
| Standards | CISPR 32 IEC/EN 55032 | EN 300 386 v2.1.1 | EN 50121-4 | FCC Part 15B Class A |
Dimensions
| Height | 88.9 mm | 3.5 in |
| Width | 449.35 mm | 17.691 in |
| Depth | 493.7 mm | 19.437 in |
| Length | 493.7 m | 1619.751 ft |
Electrical Specifications
| Input Voltage | 100–277 Vac |
| Output Current, maximum | 16 A |
| Output Power, maximum | 12 kW |
| Output Voltage | 336 Vdc |
Material Specifications
| Material Type | Powder coated steel |
Environmental Specifications
| Operating Temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Storage Temperature | -20 °C to +70 °C (-4 °F to +158 °F) |
| Relative Humidity | 5%–95%, non-condensing |
| Environmental Space | Indoor |
| Safety Standard | IEC 62368-1 |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
Documentation & Downloads
Design Guidelines
Installation Instruction
Product Specification
Video
Constellation installation overview
Constellation installation overview
Design Guidelines
Installation Instruction
Product Compliance Documentation
Product Specification
Video
Constellation installation overview
Constellation installation overview
