SEC4-B3C1H3BA000

Base Product: SEC

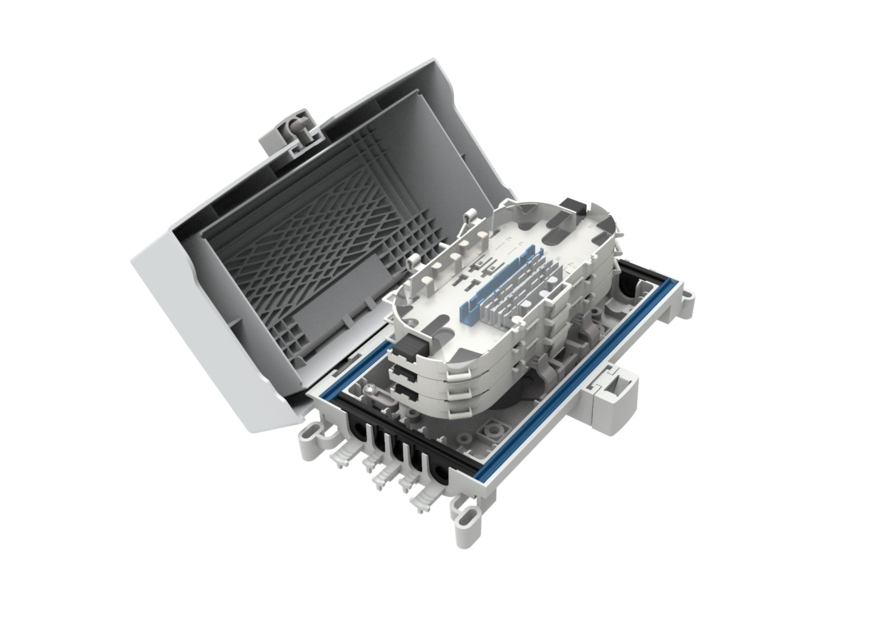

NOVUX™ SEC Closure, splice/patch, 4x SC/APC adapter, 1x factory-installed 1:4 SC/APC Grade B pre-connectorized splitter, mounting included, gray

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Design optimized for FTTH façade applications with gray and black colors
Agnostic to connectivity technologies: splice, connector, field-installable connector for agility and flexibility
Innovative removable hinge design allows cover to open from the left, right, or top
Identification plate for either QR code or customer logo
QR code and CommScope cTrak® app for one-click access to all product information

Specifications

Product classification

Regional Availability	EMEA
Regional Availability Note	Contact your local CommScope representative for specific availability
Product Type	Access terminal, non-hardened
Product Brand	NOVUX™
Product Series	SEC100

Cable Capacity, Drop	6 Round 3.0–6.0 mm (0.12–0.23 in) for pre-connectorized cables \| 6 Round 3.0–7.0 mm (0.12–0.27 in)
Cable Capacity, Branch	2 Round 8.0–12.0 mm (0.31–0.47 in)
Cable Capacity, Feeder	2 Round 8.0–12.0 mm (0.31–0.47 in)
Cable Ports Quantity, total	10 round ports
Cable Sealing Type	Gasket/grommet configuration
Enclosure Color	Gray
Lock Type	Hinged with lock
Mounting	Facade \| Wall
Port Type	SC/APC
Port, quantity	4
Splice Tray Included, quantity	3
Splice Tray Type Included	12-way, heat shrink
Splices per Tray, quantity	54
Splicing Capacity, maximum	48
Splicing Capacity, Single Fusion, maximum	48
Splicing Type, Supported	Single fusion
Splitter Type	1 x 4
Splitter, quantity	1

Fiber Type

G.657.A1 | G.657.A2 | G.657.B3

Included	1x factory-installed 1:4 SC/APC Grade B pre-connectorized splitter
Packaging quantity	1
Packaging Type	Box \| Carton

Regional Availability	EMEA
Regional Availability Note	Contact your local CommScope representative for specific availability
Product Type	Access terminal, non-hardened
Product Brand	NOVUX™
Product Series	SEC100

Cable Capacity, Drop	6 Round 3.0–6.0 mm (0.12–0.23 in) for pre-connectorized cables \| 6 Round 3.0–7.0 mm (0.12–0.27 in)
Cable Capacity, Branch	2 Round 8.0–12.0 mm (0.31–0.47 in)
Cable Capacity, Feeder	2 Round 8.0–12.0 mm (0.31–0.47 in)
Cable Ports Quantity, total	10 round ports
Cable Sealing Type	Gasket/grommet configuration
Enclosure Color	Gray
Lock Type	Hinged with lock
Mounting	Facade \| Wall
Port Type	SC/APC
Port, quantity	4
Splice Tray Included, quantity	3
Splice Tray Type Included	12-way, heat shrink
Splices per Tray, quantity	54
Splicing Capacity, maximum	48
Splicing Capacity, Single Fusion, maximum	48
Splicing Type, Supported	Single fusion
Splitter Type	1 x 4
Splitter, quantity	1
