MDC
Base Product
- Available in:
- Asia
- Latin America
- North America

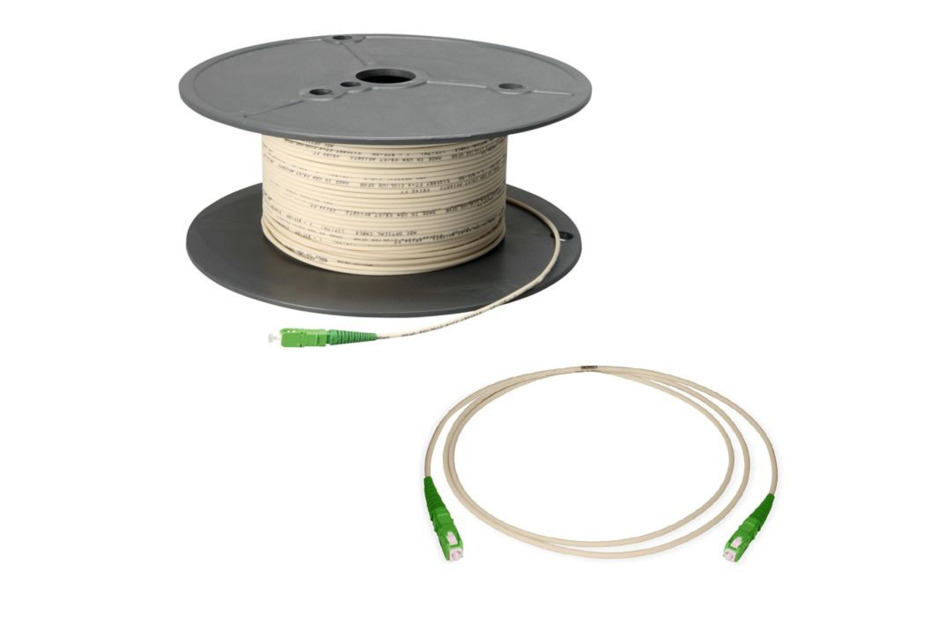

RealFlex® 3 Fiber Optic Drop Cable Assembly for indoor/outdoor applications
Configure Product Variants
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Features and Benefits
- Allow for a fiber bend radius as small as 7.5 millimeters without changing attenuation characteristics, and improve the insertion loss (IL) performance for 90-degree bend locations
- Indoor/outdoor cable available in both riser and plenum cable types for use in residential, business or MDU (multiple dwelling unit) structures
- Cables can also be stapled, (using CommScope-approved staplers and staples), allowing fast and easy securing of cables to most surfaces
- Rugged 3-millimeter cable construction provides the flexibility and durability to withstand the most demanding applications
Specifications
Product classification
| Regional Availability | Asia | Latin America | North America |
| Product Type | Fiber drop cable assembly |
| Product Brand | RealFlex® |
| Product Series | MDC |
| Ordering Note | Lengths 1-350 ft are coiled. Lengths 351 ft + are spooled. Lengths under 351' that require a spool will need to include a spool option J at the end of the MID. When "J" option is included in the MID then Connector A will deploy first. |
General Specifications
| Cable Type | Stapleable - Round |
| Jacket Color | Ivory |
| Total Fibers, quantity | 1 |
Dimensions
| Cable Outer Diameter | 2.9 mm (0.11 in) |
Ordering Tree
| Click on image to enlarge. |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2/B2 |
Environmental Specifications
| Installation temperature | -20 °C to -60 °C (-4 °F to -76 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Operating Temperature Note | Specification applicable to non-terminated bulk fiber cable |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Indoor/Outdoor | Plenum | Riser |
| Jacket UV Resistance | UV stabilized |
| Qualification Standards | Telcordia GR-20-CORE | Telcordia GR-409 |
Packaging and Weights
| Cable weight | 7.9 kg/km | 5.309 lb/kft |
Product classification
| Regional Availability | Asia | Latin America | North America |
| Product Type | Fiber drop cable assembly |
| Product Brand | RealFlex® |
| Product Series | MDC |
| Ordering Note | Lengths 1-350 ft are coiled. Lengths 351 ft + are spooled. Lengths under 351' that require a spool will need to include a spool option J at the end of the MID. When "J" option is included in the MID then Connector A will deploy first. |
General Specifications
| Cable Type | Stapleable - Round |
| Jacket Color | Ivory |
| Total Fibers, quantity | 1 |
Dimensions
| Cable Outer Diameter | 2.9 mm (0.11 in) |
Ordering Tree
| Click on image to enlarge. |
Optical Specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2/B2 |
Environmental Specifications
| Installation temperature | -20 °C to -60 °C (-4 °F to -76 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Operating Temperature Note | Specification applicable to non-terminated bulk fiber cable |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Indoor/Outdoor | Plenum | Riser |
| Jacket UV Resistance | UV stabilized |
| Qualification Standards | Telcordia GR-20-CORE | Telcordia GR-409 |
Packaging and Weights
| Cable weight | 7.9 kg/km | 5.309 lb/kft |
