BTT-B8HF000000N000

Base Product: BTT

Available in:
Latin America

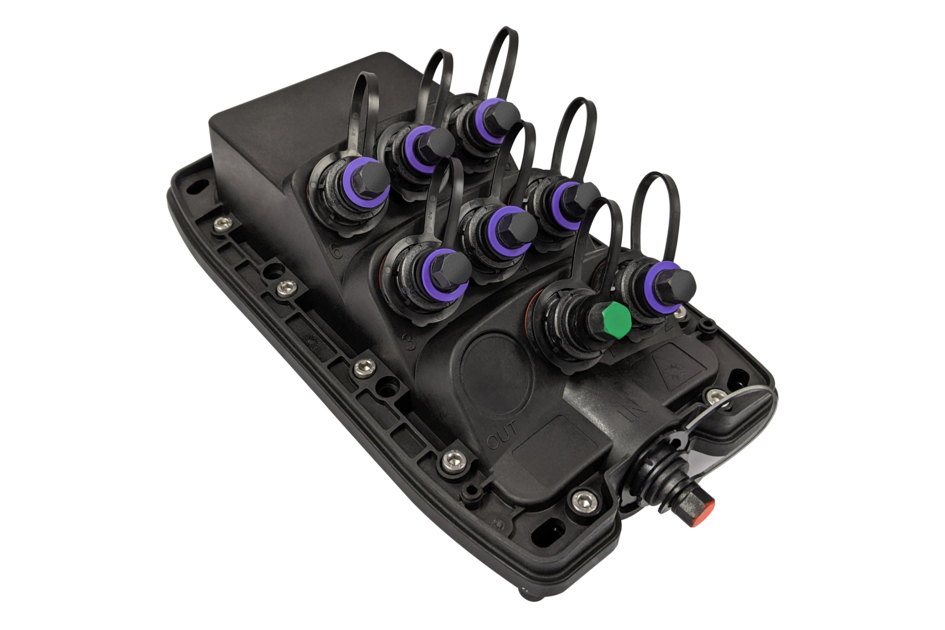

BTT Tap Terminal, 8 Port, Hardened full size, butt type, terminating configuration, black

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Full and terminating tap versions
Available in both butt and Inline configurations
Available in both black and gray housing color
Color coded ports for identification easiness

Specifications

Product classification

Regional Availability	Latin America
Product Type	Access terminal, with tap
Product Series	BTT
Minimum Order Quantity	1

General Specifications

Cable Type	No cable (stubless)
Cable, quantity	8
Distribution Type	8-port tap
Drop Port Type	Hardened full-size SC/APC
Enclosure Color	Black
Input Tap, quantity	1
Mounting	Handhole \| Pedestal \| Pole \| Strand
Port Type	Hardened full-size SC/APC
Port, quantity	9
Split Ratio	Terminating
Splitter, quantity	1
Stub Type	No stub

Dimensions

Width	141 mm \| 5.551 in
Depth	90 mm \| 3.543 in
Length	258 mm \| 10.157 in
Cable Length, stub	0 ft (0 m)

Port Configuration

Click on image to enlarge.

Ordering Tree

Click on image to enlarge.

Material Specifications

Enclosure Material Type

Glass filled polypropylene (GF-PP)

Optical Specifications

Fiber Type	G.657.A2
Operating Wavelength Range	1260 – 1650 nm
Tap Drop Loss, maximum	10.5 dB

Environmental Specifications

Operating Temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Relative Humidity	0%–100%, condensing
Environmental Space	Above ground \| Below ground \| Buried
Qualification Standards	Anatel
UV Resistance	UV stabilized

Packaging and Weights

Packaging quantity	1
Packaging Type	Box \| Carton

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant
UK-ROHS	Compliant
