810010321/DB | O-144-L2-8W-M12BK/20G

Base Product: O-L2

Available in:
EMEA

LightScope® ZWP Double Jacket/Single Armor, Gel-Filled, Outdoor Stranded Loose Tube Cable

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Features and Benefits

Corrugated steel tape armor is strong yet flexible, providing additional crush and rodent protection

Specifications

Product classification

Regional Availability	EMEA
Portfolio	CommScope®
Product Type	Fiber OSP cable
Product Series	O-L2

Optical Specifications, Wavelength Specifications

Standards Compliance

ITU-T G.652.D | ITU-T G.657.A1

General Specifications

Armor Type	Corrugated steel
Cable Type	Stranded loose tube
Construction Type	Armored
Subunit Type	Gel-filled
Inner Jacket Color	Black
Jacket Color	Black
Jacket Marking	Meters
Subunit, quantity	12
Fibers per Subunit, quantity	12
Total Fiber Count	144

Dimensions

Buffer Tube/Subunit Diameter	2 mm \| 0.079 in
Diameter Over Inner Jacket	15 mm \| 0.591 in
Diameter Over Jacket	20.4 mm \| 0.803 in

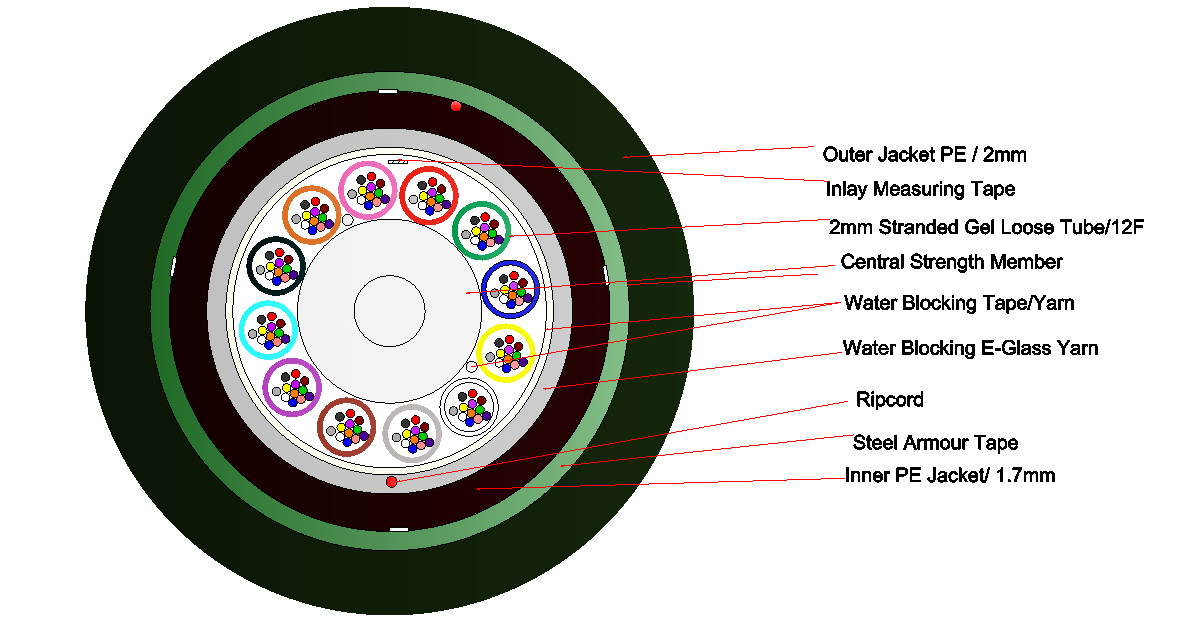

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material	PE
Inner Jacket Material	PE

Mechanical Specifications

Minimum Bend Radius, loaded	408 mm \| 16.063 in
Minimum Bend Radius, unloaded	306 mm \| 12.047 in
Tensile Load, long term, maximum	1800 N \| 404.656 lbf
Tensile Load, short term, maximum	4000 N \| 899.236 lbf
Compression	40 N/mm \| 228.406 lbf/in
Compression Test Method	IEC 60794-1 E3
Flex	25 cycles
Flex Test Method	IEC 60794-1 E6
Impact	10 N-m \| 88.507 in lb
Impact Test Method	IEC 60794-1 E4
Strain	See long and short term tensile loads
Strain Test Method	IEC 60794-1 E1

Optical Specifications

Fiber Type

G.652.D and G.657.A1

Environmental Specifications

Installation temperature	-30 °C to +60 °C (-22 °F to +140 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 ºC to +70 ºC (-40 ºF to +158 ºF)
Cable Qualification Standards	IEC 60794-1-2
EN50575 CPR Cable EuroClass Fire Performance	Fca
Environmental Space	Buried
Jacket UV Resistance	UV stabilized
Water Penetration	24 h
Water Penetration Test Method	IEC 60794-1 F5

Environmental Test Specifications

Heat Age	-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test Method	IEC 60794-1 F9
Temperature Cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test Method	IEC 60794-1 F1

Packaging and Weights

Cable weight

371 kg/km | 249.301 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant
UK-ROHS	Compliant
