MHD-ACC-M12N-0010F

Base Product: MHD-TEST-CORD

  • Available in:
  • Asia
  • Latin America
  • North America

Fiber Test Cable Assembly, HMFOC Jack/Pinned/Male to 12 SC/UPCs, 10 Feet

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Latin America | North America
Product Type Test patch cord, multi-fiber
Product Series MHD

General Specifications

Connector A, quantity 1
Color, boot A Black
Color, connector A Black
Connector B, quantity 12
Color, boot B Blue
Color, connector B Blue
Interface, Connector A Hardened multi-fiber (HMFOC) plug
Interface Feature, connector A Male
Interface, Connector B SC/UPC
Jacket Color Black
Total Fibers, quantity 12

Dimensions

Height Over Jacket 4.5 mm | 0.177 in
Width Over Jacket 8 mm | 0.315 in
Breakout Length 28 in
Cord Length 3.048 m | 10 ft

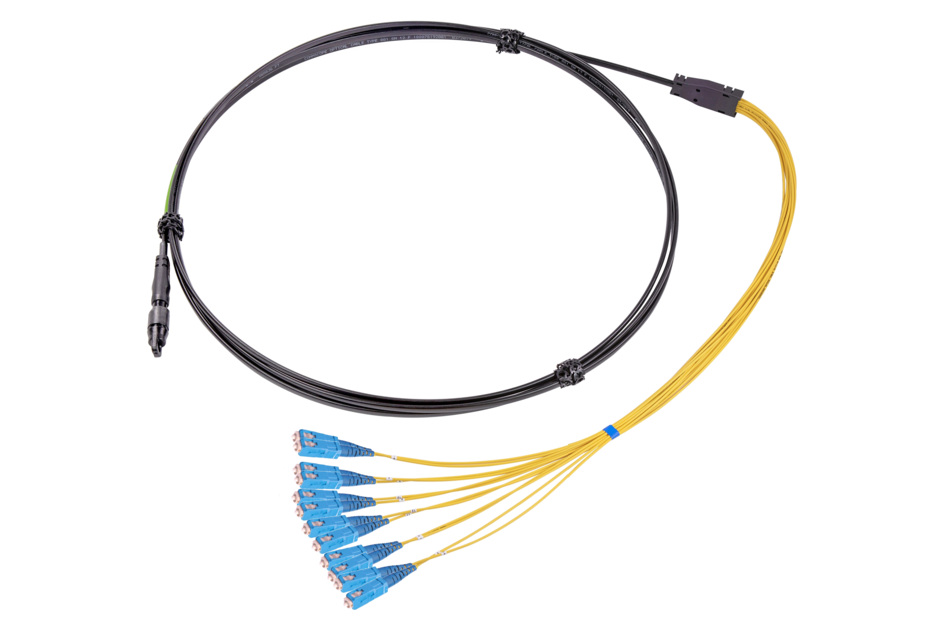

Representative Image

Click on image to enlarge.

Material Specifications

Jacket Material Dielectric - Flat

Mechanical Specifications

Minimum Bend Radius, loaded 88.9 mm | 3.5 in
Minimum Bend Radius, unloaded 63.5 mm | 2.5 in

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2, TeraSPEED®
Insertion Loss, maximum, connector A 0.45 dB
Insertion Loss, maximum, connector B 0.4 dB
Return Loss, minimum, connector A 65 dB
Return Loss, minimum, connector B 65 dB

Environmental Specifications

Installation temperature -30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Operating Temperature Note Specification applicable to non-terminated bulk fiber cable
Storage Temperature -40 °C to +75 °C (-40 °F to +167 °F)
Environmental Space Outdoor
Jacket UV Resistance UV stabilized

Packaging and Weights

Cable weight 33 kg/km | 22.175 lb/kft
Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
