760260765 | VCM-DS-84-6WH-TD
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

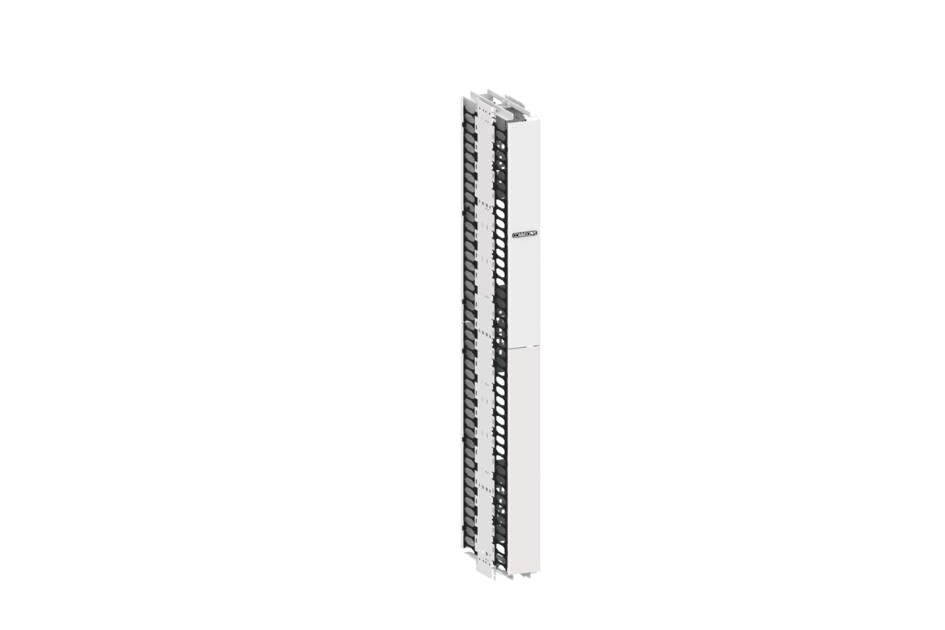

CableGuide Essential, Vertical Cable Management Kit, 6 inch x 84 inch double sided, with twin covers, white
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Vertical cable management |
General Specifications
| Configuration Type | Double-sided |
| Color | White |
Dimensions
| Height | 2133.600 mm | 84 in |
| Width | 152.400 mm | 6 in |
| Depth | 493.522 mm | 19.43 in |
Material Specifications
| Finish | Powder-coated, smooth |
| Material Type | Metal |
Environmental Specifications
| Safety Standard | UL | cUL |
Packaging and Weights
| Included | Four 1/2-20 hex nuts | Four 1/2-20 x 1 in hex head bolts | Four flat washers |
| Packaging quantity | 1 |
| Packaging Type | Assembled |
| Weight, net | 16.701 kg | 36.82 lb |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Vertical cable management |
General Specifications
| Configuration Type | Double-sided |
| Color | White |
Dimensions
| Height | 2133.600 mm | 84 in |
| Width | 152.400 mm | 6 in |
| Depth | 493.522 mm | 19.43 in |
Material Specifications
| Finish | Powder-coated, smooth |
| Material Type | Metal |
Environmental Specifications
| Safety Standard | UL | cUL |
Packaging and Weights
| Included | Four 1/2-20 hex nuts | Four 1/2-20 x 1 in hex head bolts | Four flat washers |
| Packaging quantity | 1 |
| Packaging Type | Assembled |
| Weight, net | 16.701 kg | 36.82 lb |
