FGS-HNTS-F-14MM-LP

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

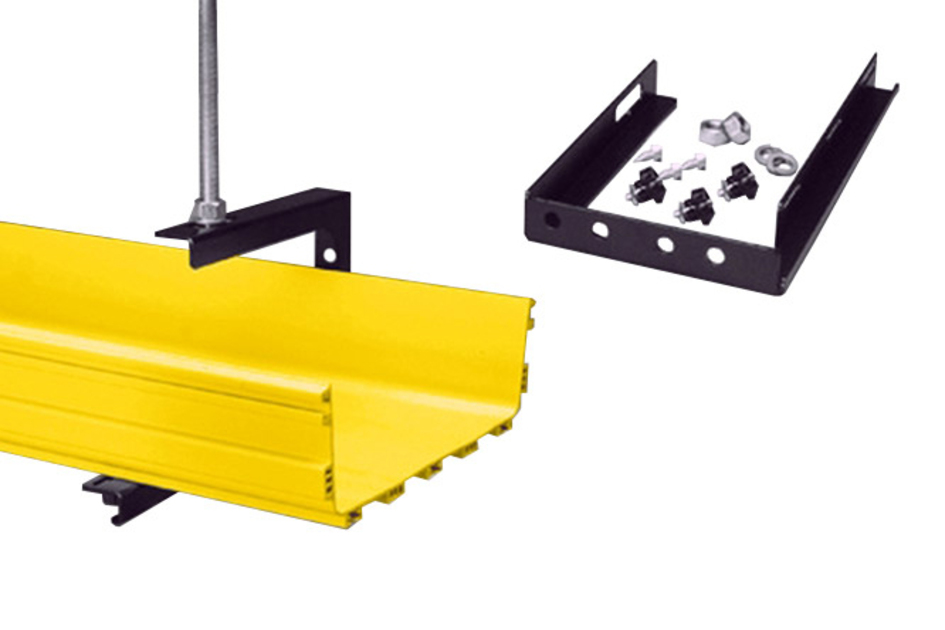

FiberGuide® Low-Profile Top Support C-Bracket Kit, 14mm for 4x12in System

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Support mounting kit
Product Brand FiberGuide®
Product Series FGS

General Specifications

Color Black
Orientation Horizontal
Section Type Bracket
Bracket Type C-bracket
Bracket Installation Type N/A
Attachment Type Threaded rod

Dimensions

Height 203.2 mm | 8 in
Width 38.1 mm | 1.5 in
Length 381 mm | 15 in
Thread Size 14 mm
System Dimensions 102 mm x 305 mm (4 in x 12 in)

Ordering Tree

Click on image to enlarge.

Material Specifications

Material Type Carbon steel

Packaging and Weights

Included Hardware
Packaging quantity 1
Weight, net 4.736 kg | 10.441 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
