FGS-MD9E-M

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

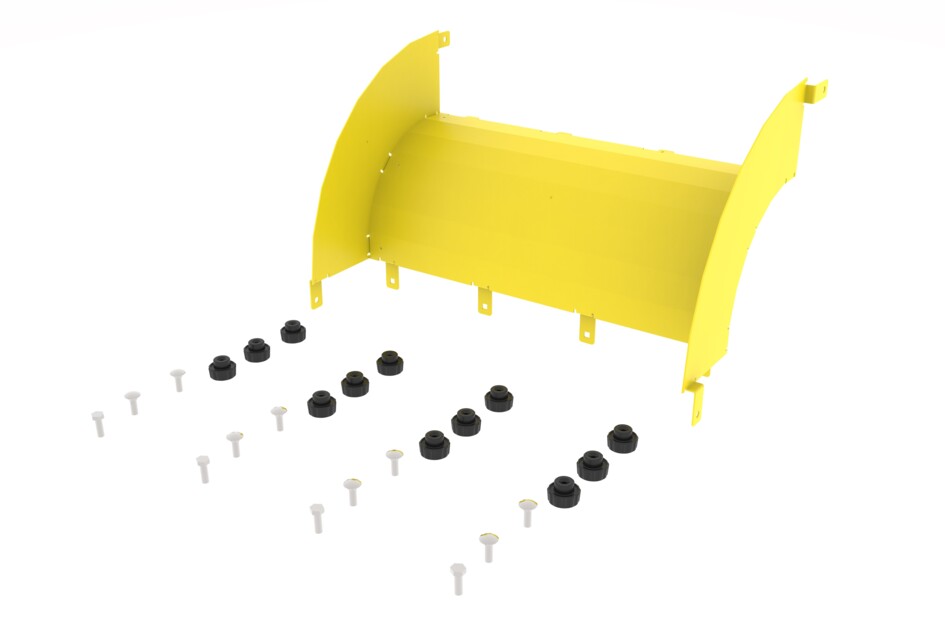

FiberGuide® 90° Down Elbow, 4 in x 18 in, yellow

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Elbow
Product Brand FiberGuide®
Product Series FGS

General Specifications

Angle/Bend Direction 90° down
Color Yellow
Orientation Vertical
Section Type Elbow section

Dimensions

Height 177.038 mm | 6.97 in
Width 503.428 mm | 19.82 in
System Dimensions 102 mm x 457 mm (4 in x 18 in)

Ordering Tree

Click on image to enlarge.

Material Specifications

Material Type Carbon steel

Packaging and Weights

Weight, net 1.81 kg | 3.99 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
