760117887 | MFC-LCF-09-5X QWIK II™ LC

Base Product: QWIK II

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

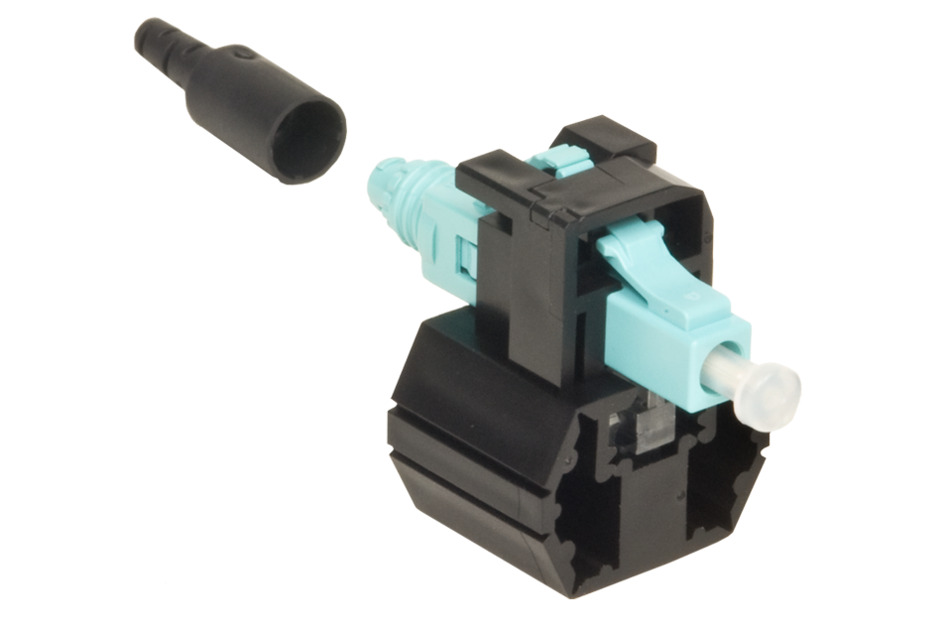

Field Installable LC Connector, OM3/4/5, Aqua, for 250/900um, single pack

Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber connector
Product Brand LazrSPEED® | Qwik
Product Series Qwik II

General Specifications

Body Style BTW
Color, boot Black
Color, housing Aqua
Ferrule Geometry Factory polished
Interface LC
Interface Feature Field Installable | Mechanical splice

Dimensions

Length 42.6 mm | 1.677 in
Compatible Cable Diameter 0.25 mm | 0.010 in | 0.9 mm | 0.035 in

Material Specifications

Ferrule Material Zirconia

Mechanical Specifications

Cable Retention Strength, maximum 1.00 lb @ 0 °

Optical Specifications

Fiber Mode Multimode
Fiber Type OM3 | OM4 | OM5, LazrSPEED® wideband
Insertion Loss Change, mating 0.2 dB
Optical Components Standard ANSI/TIA-568. 3-D
Insertion Loss Change, temperature 0.3 dB
Insertion Loss, maximum 0.5 dB
Insertion Loss, typical 0.1 dB
Return Loss, minimum 20 dB

Environmental Specifications

Operating Temperature -40 °C to +75 °C (-40 °F to +167 °F)

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS Below maximum concentration value
