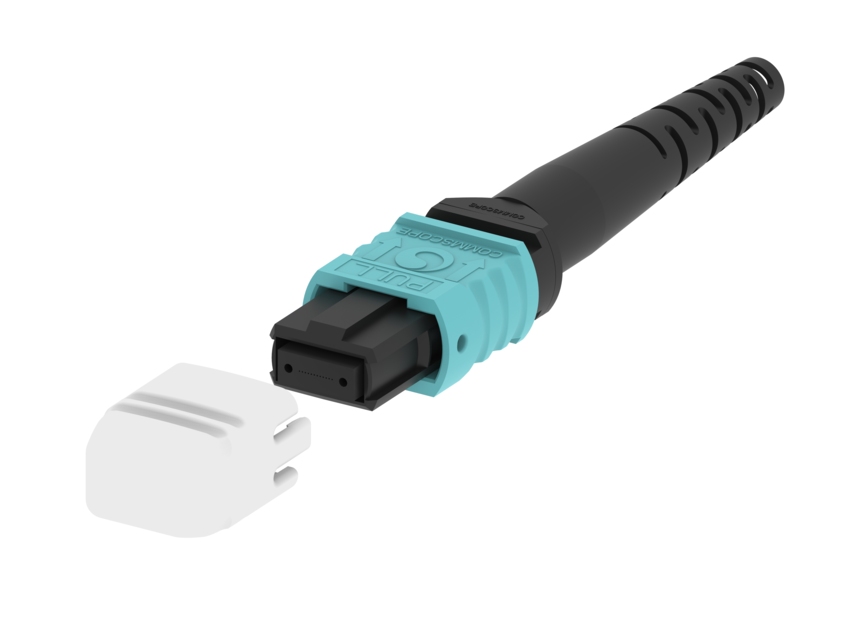

MPO12, LOW LOSS, FEMALE, OM3/4, AQUA, 3mm

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber connector

General Specifications

Color Aqua
Color, boot Black
Ferrule Geometry Flat
Interface MPO/UPC Female
Interface Feature Unpinned
Total Fiber Count 12

Dimensions

Length 60.1 mm | 2.366 in
Compatible Cable Diameter 3 mm | 0.118 in

Material Specifications

Ferrule Material Polymer

Mechanical Specifications

Cable Retention Strength, maximum 11.24 lb @ 0 °

Optical Specifications

Fiber Mode Multimode
Fiber Type OM3 | OM4
Insertion Loss Change, mating 0.2 dB
Optical Components Standard ANSI/TIA-568-C.3
Insertion Loss Change, temperature 0.2 dB
Insertion Loss, maximum 0.2 dB
Return Loss, minimum 27 dB

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber connector

General Specifications

Color Aqua
Color, boot Black
Ferrule Geometry Flat
Interface MPO/UPC Female
Interface Feature Unpinned
Total Fiber Count 12

Dimensions

Length 60.1 mm | 2.366 in
Compatible Cable Diameter 3 mm | 0.118 in

Material Specifications

Ferrule Material Polymer

Mechanical Specifications

Cable Retention Strength, maximum 11.24 lb @ 0 °

Optical Specifications

Fiber Mode Multimode
Fiber Type OM3 | OM4
Insertion Loss Change, mating 0.2 dB
Optical Components Standard ANSI/TIA-568-C.3
Insertion Loss Change, temperature 0.2 dB
Insertion Loss, maximum 0.2 dB
Return Loss, minimum 27 dB

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
