860655892

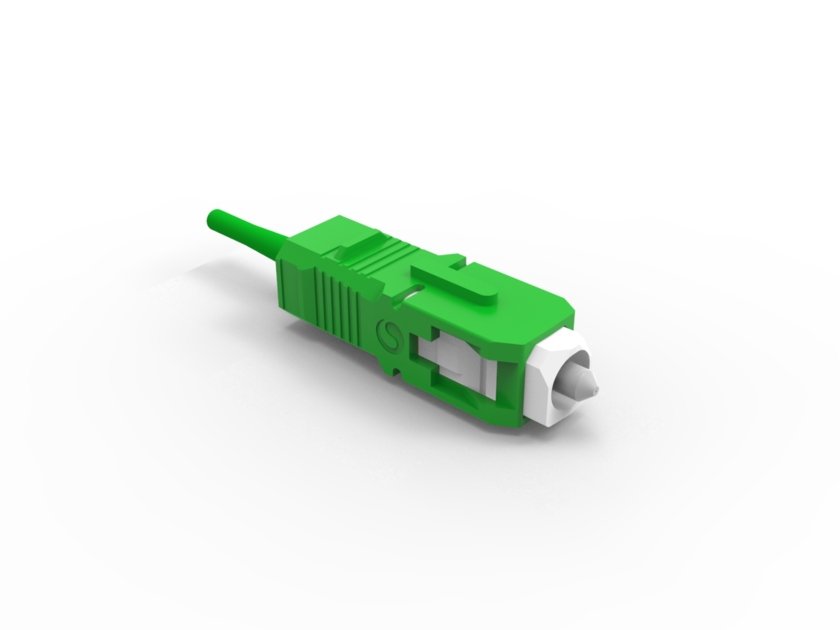

SC/APC Connector, Singlemode, Green

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber connector

Length	42 mm \| 1.654 in
Compatible Cable Diameter	0.9 mm \| 0.035 in

Ferrule Material

Zirconia

Cable Retention Strength, maximum

4.40 lb @ 0 °

Fiber Mode	Singlemode
Insertion Loss Change, mating	0.2 dB
Optical Components Standard	ANSI/TIA-568. 3-D \| IEC 61753-1
Insertion Loss Change, temperature	0.2 dB
Insertion Loss, maximum	0.34 dB
Insertion Loss, ULL, maximum	0.34 dB
Return Loss, minimum	65 dB

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber connector

Length	42 mm \| 1.654 in
Compatible Cable Diameter	0.9 mm \| 0.035 in

Ferrule Material

Zirconia

Cable Retention Strength, maximum

4.40 lb @ 0 °

Fiber Mode	Singlemode
Insertion Loss Change, mating	0.2 dB
Optical Components Standard	ANSI/TIA-568. 3-D \| IEC 61753-1
Insertion Loss Change, temperature	0.2 dB
Insertion Loss, maximum	0.34 dB
Insertion Loss, ULL, maximum	0.34 dB
Return Loss, minimum	65 dB
