760190686 | M81-HDMI-HDMI-266
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

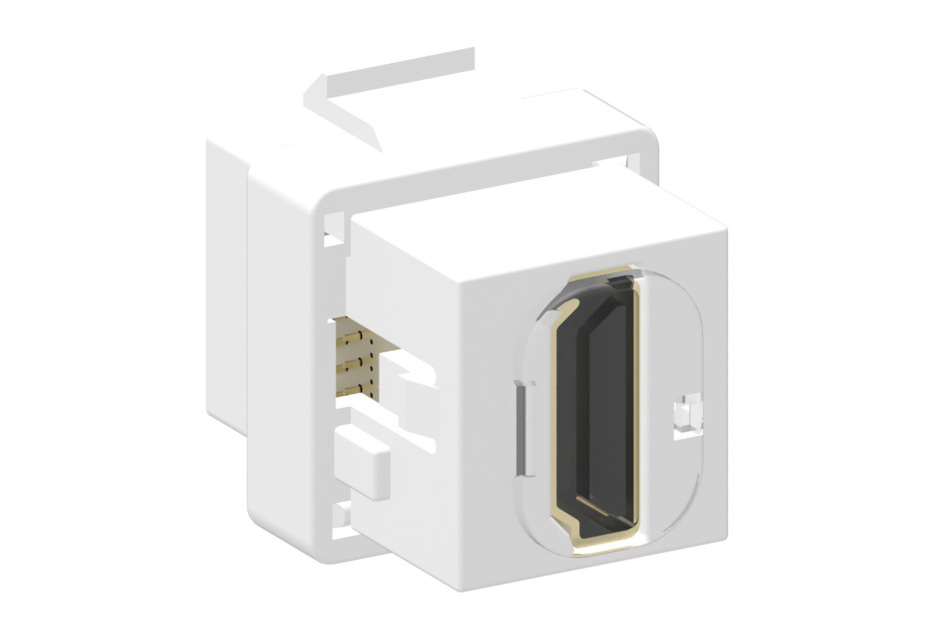

M81-HDMI-PT-266 Pass-Through Connector, Pro white
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Multimedia outlet |
General Specifications
| Application | Module designed for audio/video applications |
| Color | Pro white |
| Mounting | Snap-in |
Dimensions
| Height | 23.876 mm | 0.94 in |
| Width | 21.336 mm | 0.84 in |
| Depth | 31.496 mm | 1.24 in |
Electrical Specifications
| Insulation Resistance, minimum | 100 mOhm |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | 5%–95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | CSA | HDMI 1.4 | UL |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Multimedia outlet |
General Specifications
| Application | Module designed for audio/video applications |
| Color | Pro white |
| Mounting | Snap-in |
Dimensions
| Height | 23.876 mm | 0.94 in |
| Width | 21.336 mm | 0.84 in |
| Depth | 31.496 mm | 1.24 in |
Electrical Specifications
| Insulation Resistance, minimum | 100 mOhm |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic |
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | 5%–95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | CSA | HDMI 1.4 | UL |
Packaging and Weights
| Packaging quantity | 1 |
Regulatory Compliance/Certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
