760235092 | M2400-1U-GS-VCM

Base Product: M2400-PANELS

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

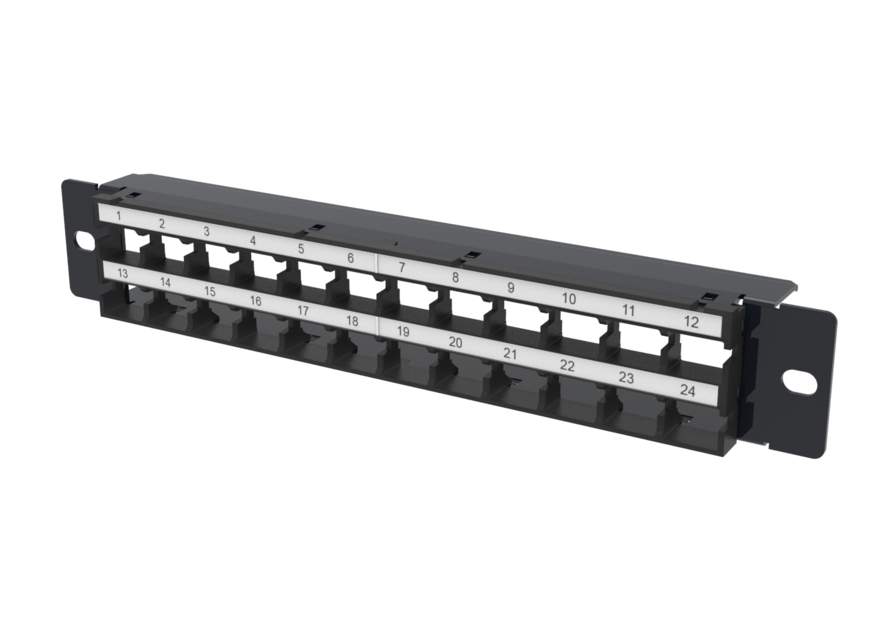

M2400 1U Modular Panel for 12" VCM, 24 port (MGS600 / MGS400 / MPS100 / UNJ10GT / UNJ600T / UNJ10G / UNJ600 / UNJ500), Black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
  • Panel is designed to fit the VCM 12” (Vertical Cable Management Kit, 12inch ) portfolio

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type RJ45 patch panel
Product Brand GigaSPEED X10D®
Product Series M Series

General Specifications

ANSI/TIA Category NA
Cable Type Unshielded
Color Black
Intelligence Type Passive
Panel Style Flat
Rack Type EIA 19 in
Rack Units 1
Total Ports, quantity 24

Dimensions

Height 43.69 mm | 1.72 in
Width 279.45 mm | 11.002 in
Depth 53.59 mm | 2.11 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic | Powder-coated steel

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity Up to 95%, non-condensing
Flammability Rating UL 94 V-0
Safety Standard UL | cUL

Packaging and Weights

Packaging quantity 1
