760253535 | M2400A-1U-GS-WH

Base Product: M2400-PANELS

  • Available in:
  • North America

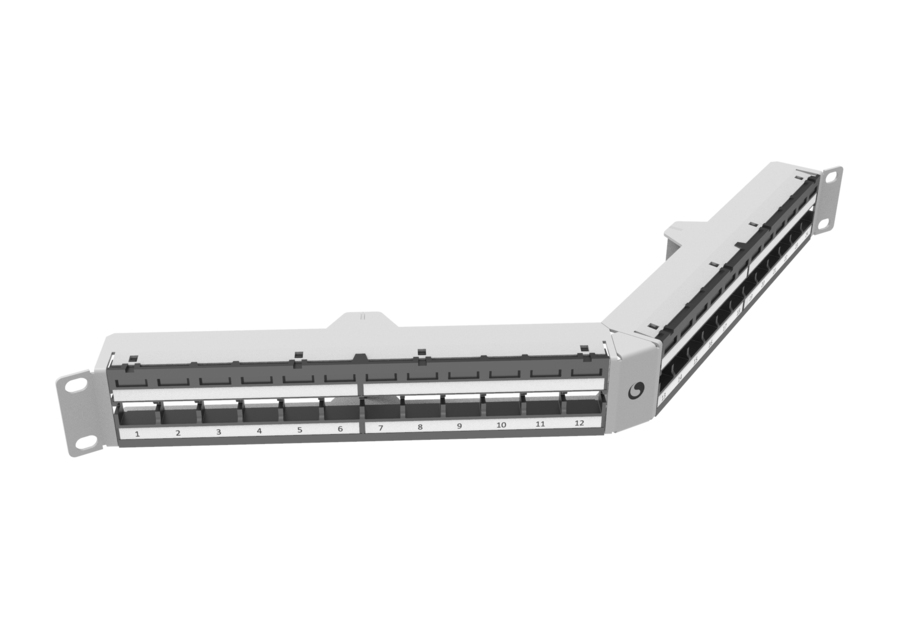

M2400 1U Angled Modular Panel, 24 port (MGS600 / MGS400 / MPS100 / UNJ10GT / UNJ600T / UNJ10G / UNJ600 / UNJ500), White

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability North America
Portfolio CommScope®
Product Type RJ45 patch panel
Product Brand GigaSPEED X10D®
Product Series M Series

General Specifications

ANSI/TIA Category 6 | 6A
Cable Type Unshielded
Color White
Intelligence Type Passive
Panel Style Angled
Rack Type EIA 19 in
Rack Units 1
Total Ports, quantity 24

Dimensions

Height 43.69 mm | 1.72 in
Width 482.6 mm | 19 in
Depth 138.18 mm | 5.44 in
Compatible Diameter Over Dielectric, maximum 1.168 mm | 0.046 in
Compatible Diameter Over Dielectric, minimum 0.762 mm | 0.03 in

Material Specifications

Material Type High-impact, flame retardant, thermoplastic | Powder-coated steel

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity Up to 95%, non-condensing
Flammability Rating UL 94 V-0
Safety Standard UL | cUL

Packaging and Weights

Packaging Material Eco-friendly, single-use plastics-free
Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
