M2400-PANELS

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

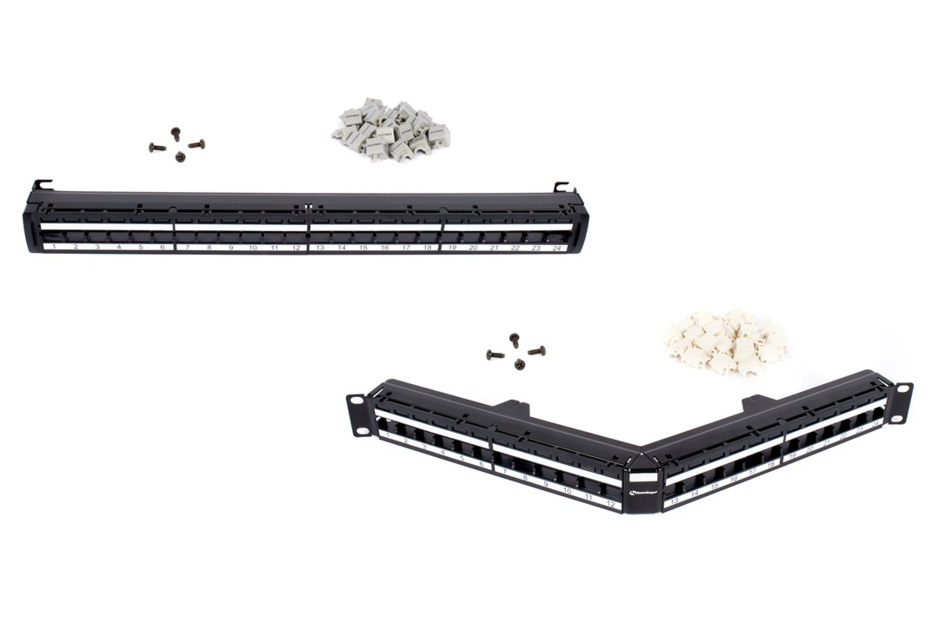

SYSTIMAX M2400 Series Modular Panels, 24 ports, for Cat 5E, 6, and 6A Jacks

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of M2400-PANELS by selecting options

Product	Panel Style	Regional Availability	Portfolio	Product Brand	Product Series	Product Type	ANSI/TIA Category	Cable Type	Color	Intelligence Type	Rack Units	Total Ports, quantity
760118323 \| M2400-1U-GS M2400 1U Modular Panel, 24 port (MGS600 / MGS400 / MPS100 / UNJ10GT / UNJ600T / UNJ10G / UNJ600 / UNJ500), Black Specifications	Flat	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	GigaSPEED X10D®	M Series	RJ45 patch panel	NA	Unshielded	Black	Passive	1	24
760118349 \| M2400A-1U-GS M2400 1U Angled Modular Panel, 24 port (MGS600 / MGS400 / MPS100 / UNJ10GT / UNJ600T / UNJ10G / UNJ600 / UNJ500 ), Black Specifications	Angled	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	GigaSPEED X10D®	M Series	RJ45 patch panel	NA	Unshielded	Black	Passive	1	24
760235092 \| M2400-1U-GS-VCM M2400 1U Modular Panel for 12" VCM, 24 port (MGS600 / MGS400 / MPS100 / UNJ10GT / UNJ600T / UNJ10G / UNJ600 / UNJ500), Black Specifications	Flat	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	GigaSPEED X10D®	M Series	RJ45 patch panel	NA	Unshielded	Black	Passive	1	24

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	RJ45 patch panel

General Specifications

Rack Type	EIA 19 in
Rack Units	1
Total Ports, quantity	24

Material Specifications

Material Type

High-impact, flame retardant, thermoplastic | Powder-coated steel

Environmental Specifications

Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity	Up to 95%, non-condensing
Flammability Rating	UL 94 V-0
Safety Standard	UL \| cUL
