760242108 | PNL-CS-12LCV-PT

Base Product: LGX/1000-SPLICE-CASSETTES

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

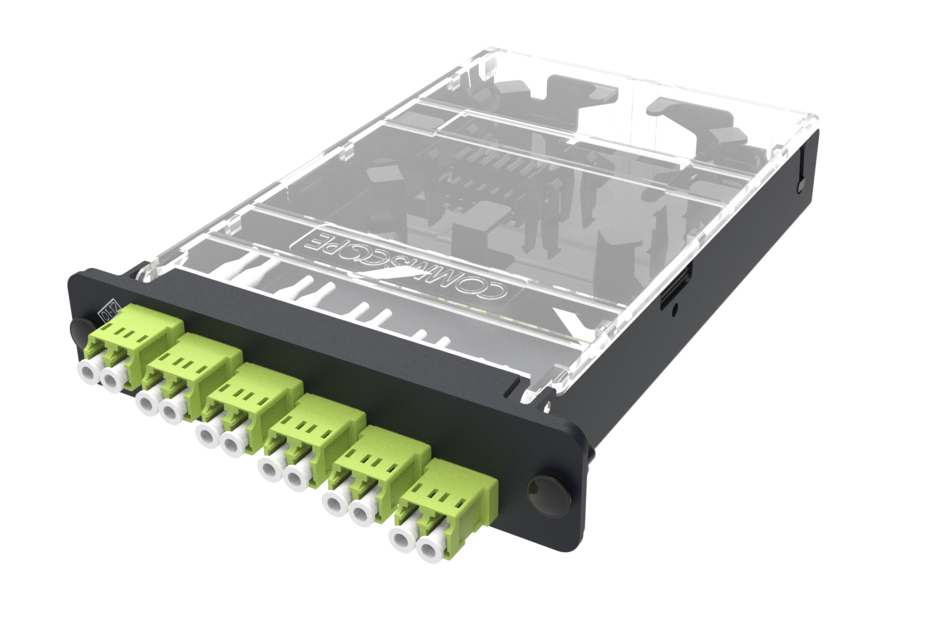

Standard Density (SD) Splicing cassette 12LC OM5, 900μm

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber cassette with pigtails

General Specifications

Adapter Color Lime green
Interface, front LC/UPC
Interface, rear Stranded pigtail
Total Fibers, quantity 12
Total Ports, quantity, front 6

Dimensions

Height 28.956 mm | 1.14 in
Width 104.648 mm | 4.12 in
Depth 165.354 mm | 6.51 in
Pigtail Length 1.5 m | 4.921 ft

Optical Specifications

Fiber Mode Multimode
Fiber Type OM5, LazrSPEED® wideband
Insertion Loss, typical 0.3 dB

Environmental Specifications

Safety Standard UL

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
