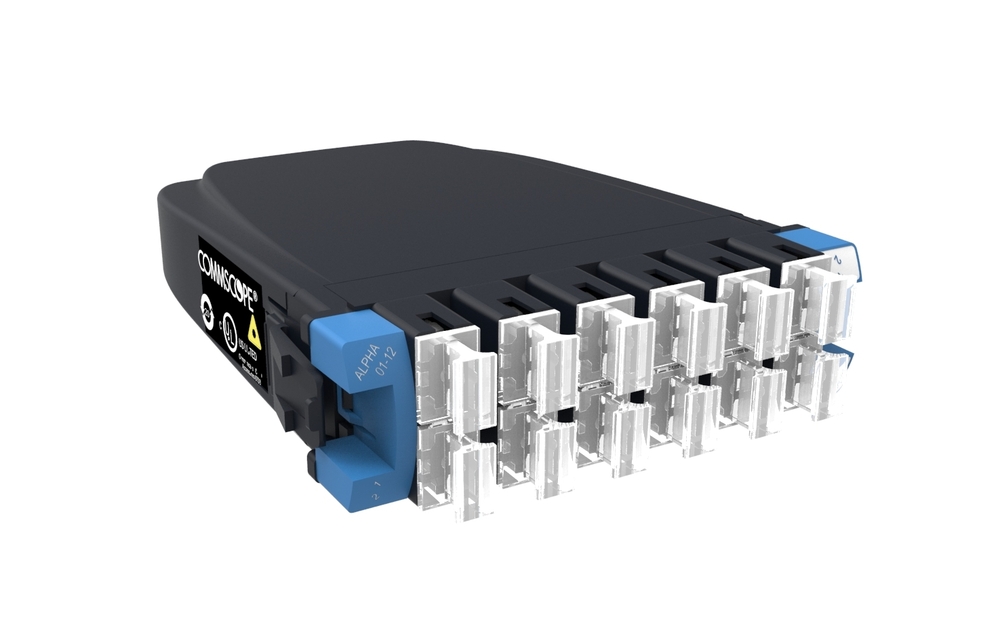

760109975 | 360DM-12SC-SM

Base Product: G2-MODULES

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

G2 LL Singlemode MPO 12 distribution module, 12 SC to 1x12f MPO pinned, dust plugs

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber module
Product Series G2

General Specifications

Functionality Breakout
Color, front Blue
Color, rear Gray
Interface, front SC/UPC
Interface, rear MPO
Interface Feature, rear Key up/up | Pinned
Polarity Method B
Shuttered No
Total Fibers, quantity 12

Dimensions

Height 26 mm | 1.024 in
Width 95 mm | 3.74 in
Depth 117.7 mm | 4.634 in

Optical Specifications

Fiber Mode Singlemode
Fiber Type OS2
Insertion Loss, maximum 1.05 dB

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard CE | CSA | UL

Packaging and Weights

Packaging quantity 1
Weight, net 0.113 kg | 0.249 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
