760238894 | EHD12-DM-24LC-SM-B-ULLM

Base Product: EHD-MODULES

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

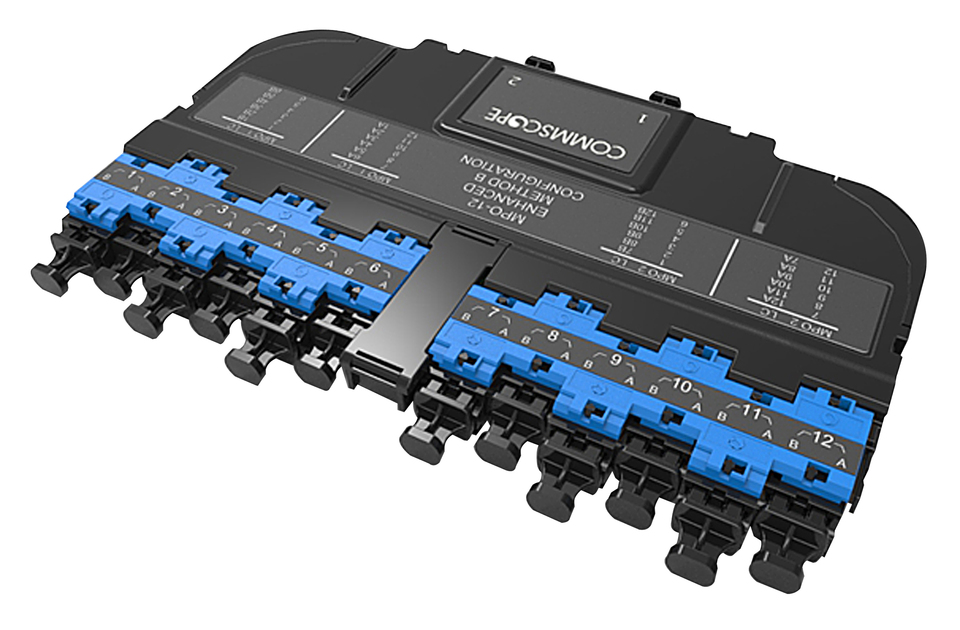

EHD ULL Singlemode MPO-12 distribution module, 24LC to 2x12f MPOs pinned, dust plugs

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber module
Product Brand SYSTIMAX ULL
Product Series EHD

General Specifications

Functionality Breakout
Color, front Blue
Color, rear Gray
Interface, front LC/UPC
Interface, rear MPO
Interface Feature, rear Key up/up | Pinned
Polarity Method B Enhanced (ULL)
Shuttered No
Total Fibers, quantity 24

Dimensions

Height 12.45 mm | 0.49 in
Width 169.67 mm | 6.68 in
Depth 115.32 mm | 4.54 in

Optical Specifications

Fiber Mode Singlemode
Fiber Type OS2
Insertion Loss, maximum 0.6 dB

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard CE | CSA | UL

Packaging and Weights

Packaging quantity 1
Weight, net 0.136 kg | 0.3 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
