760253798 | PPL-4U-HD-FX

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

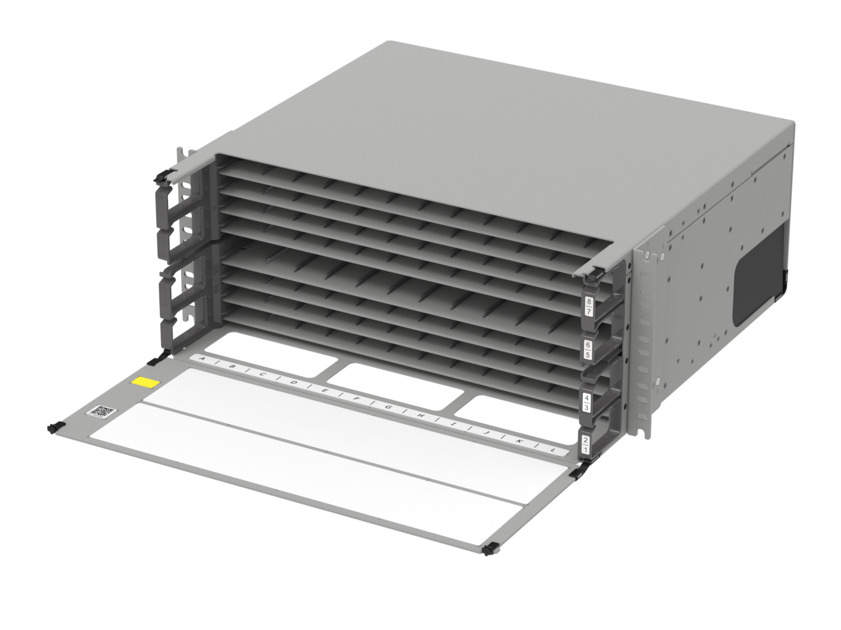

Propel 4RU fixed tray fiber panel, accepts Propel ULL modules or adapter packs, providing up to 192 duplex LC ports, 192 MPO ports or 384 SN ports (768f)

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

Any size Propel component can be used in each panel or blade
Components can be installed and removed from front or rear of panel
Supports 8f, 12f, 16f and 24f applications while maintaining full panel density
Cable mounting system allows for multiple trunk cables to be securely attached in the rear of panel

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber patch panel
Product Brand	Propel
Product Series	PPL

General Specifications

Color	Gray
Interface, front	Unloaded
Rack Type	EIA 19 in
Rack Units	4
Shelf Movement	Fixed
Total Ports, quantity	0

Dimensions

Height	178 mm \| 7.008 in
Width	483 mm \| 19.016 in
Depth	426 mm \| 16.772 in

Port Configuration

Click on image to enlarge.

Material Specifications

Material Type

Aluminum | Steel

Environmental Specifications

Safety Standard

c-UL-us

Packaging and Weights

Packaging quantity

Regulatory Compliance/Certifications

Agency	Classification
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
UK-ROHS	Compliant

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber patch panel
Product Brand	Propel
Product Series	PPL
