FLEX-ODF

Base Product

Fiber Patch Cabinet

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants

Configure and display product variants of FLEX-ODF by selecting options

Product	Depth	Height	Width	Regional Availability	Product Series	Product Type	Access	Application	Color	Growth Configuration	Mounting
760242401 \| ODF-FF19CM-36 Flex frame Rack with cable managers, 19" standard mouting, 36ru of open rack space Specifications	609.6 mm \| 24 in	2133.6 mm \| 84 in	1339.09 mm \| 52.72 in	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	Flex Frame	Frame	Front \| Rear	For use with any 19" rack mount panels	Black	Unloaded	Concrete floor \| Raised floor
760242402 \| ODF-FF19CM-SPL Flex frame Rack with cable managers and Splice Cabinet Specifications	609.6 mm \| 24 in	2133.6 mm \| 84 in	1339.09 mm \| 52.72 in	North America	Flex Frame	Frame	Front \| Rear	For use with any 19" rack mount panels	Black	Unloaded	Concrete floor \| Raised floor
760258507 Flex frame-S Rack with cable managers, 19" standard mouting, 24ru of open rack space Specifications	609.6 mm \| 24 in	2133.6 mm \| 84 in	762 mm \| 30 in	Latin America \| North America	Flex Frame	Frame	Front \| Rear	For use with any 19" rack mount panels	Black	Unloaded	Concrete floor \| Raised floor
760259550 \| ODF-FF19GCM-48RU Flex Frame Rack with cable managers Specifications	609.6 mm \| 24 in	2133.6 mm \| 84 in	1339.09 mm \| 52.72 in	North America	Flex Frame	Frame	Front \| Rear	For use with any 19" rack mount panels	Black	Unloaded	Concrete floor \| Raised floor

Features and Benefits

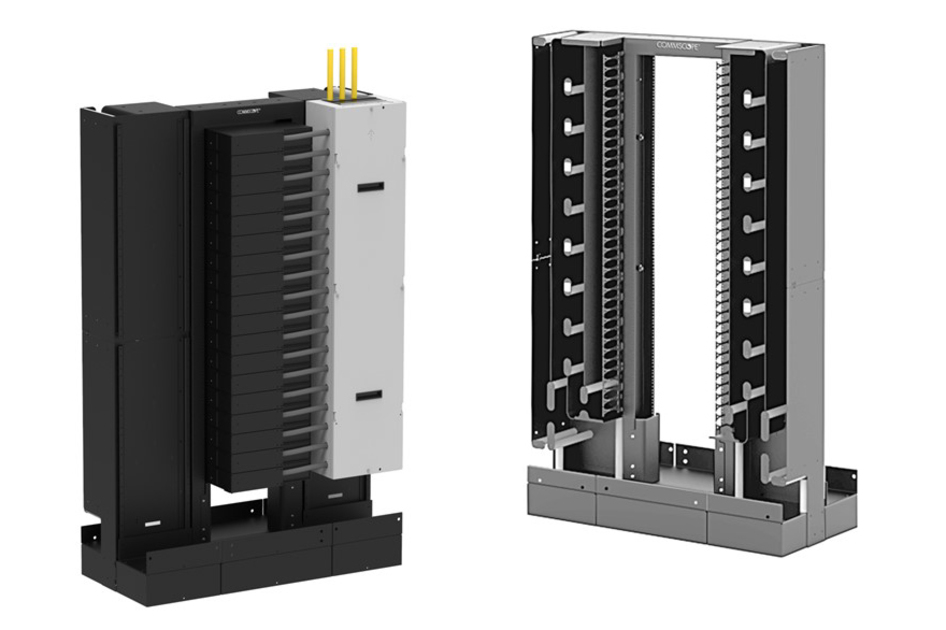

The CommScope Flex Frame features on-frame splicing (to protect the panels’ internal components) and significant slack storage (for optimal fiber cable management). On-frame splicing allows for more than one person to splice at once, saving time and costs associated with installing a cable management system.
