FD5M-288S00DDB4

Available in:
Latin America
North America

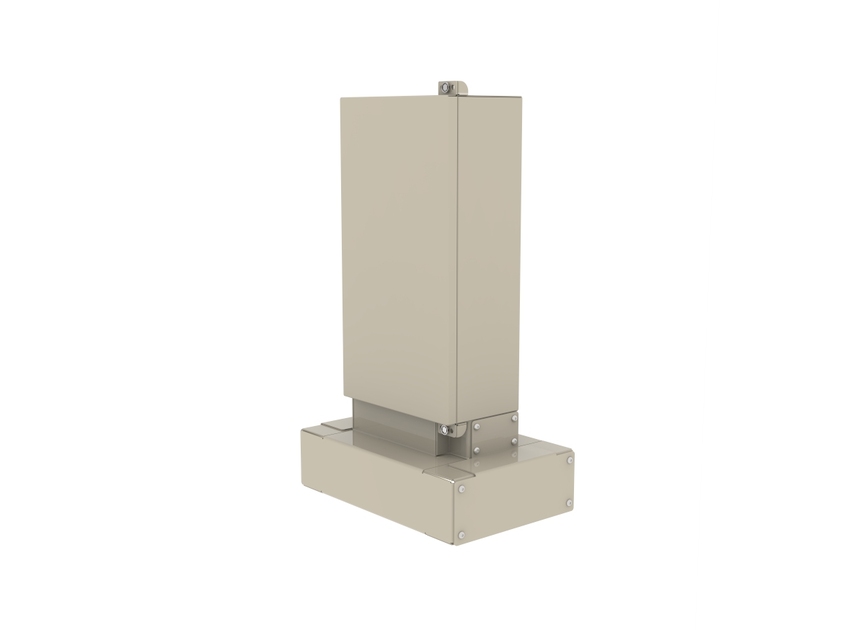

Small FDH cabinet with 288 ports, LC/APC, no splitters, dry dielectric flat ribbon, 100 ft stub, 72F feeder, 288F distribution pad mount with 8 in riser

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Specifications

Product classification

Regional Availability	Latin America \| North America
Product Type	Fiber distribution hub
Product Series	FDH 5000

General Specifications

Access	Front
Cable Type	Pigtails - Ribbon
Color	Putty white
Distribution Cables, quantity	1
Distribution Ports, quantity	288
Fibers per Distribution Cable, quantity	288
Fibers per Feeder Cable, quantity	72
Mounting	Pad
Splitter Slots, quantity	9

Dimensions

Height	850.9 mm \| 33.5 in
Width	500.38 mm \| 19.7 in
Depth	190.5 mm \| 7.5 in
Cable Length	30.48 m \| 100 ft
Enclosure Size	Small

Material Specifications

Finish	Powder coated
Material Type	Aluminum

Environmental Specifications

Environmental Space

Above ground

Packaging and Weights

Packaging quantity	1
Packaging Type	Pallet

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
