760033928 | 600G2-1U-UP-FX

  • Available in:
  • Asia
  • Australia/New Zealand
  • China
  • India

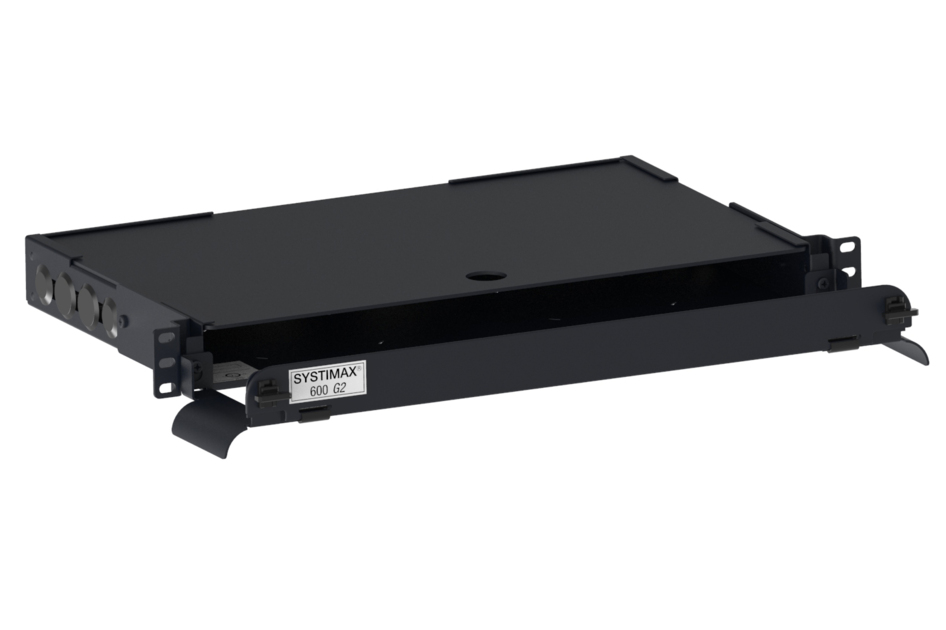

G2 1U Fixed Faceplate style, unloaded Fiber Optic Panel, without front faceplate, black

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product classification

Regional Availability Asia | Australia/New Zealand | China | India
Regional Availability Note Discontinued in all other regions since December 14, 2019 and replaced by 760234738 | SD-1U-FX-UP in North America, Latin America and EMEA
Portfolio CommScope®
Product Type Fiber patch panel

General Specifications

Application Accepts one G2 front faceplate | Accepts two RoloSplices with three trays each
Color Black
Growth Configuration Unloaded
Interface, front Unloaded
Patch Cord Routing Left sided | Right sided
Rack Type EIA 19 in | ETSI 600 mm
Rack Units 1
Shelf Movement Fixed
Total Ports, quantity 0

Dimensions

Height 44.45 mm | 1.75 in
Width 482.6 mm | 19 in
Depth 355.6 mm | 14 in

Material Specifications

Finish Powder coated
Material Type Steel

Packaging and Weights

Included Cable management kit | Cover | Instruction sheet | Label | Mounting hardware | Strain relief
Weight, net 3.266 kg | 7.2 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
