760231522 | HD-4U-SP

Base Product: HD-PANELS

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

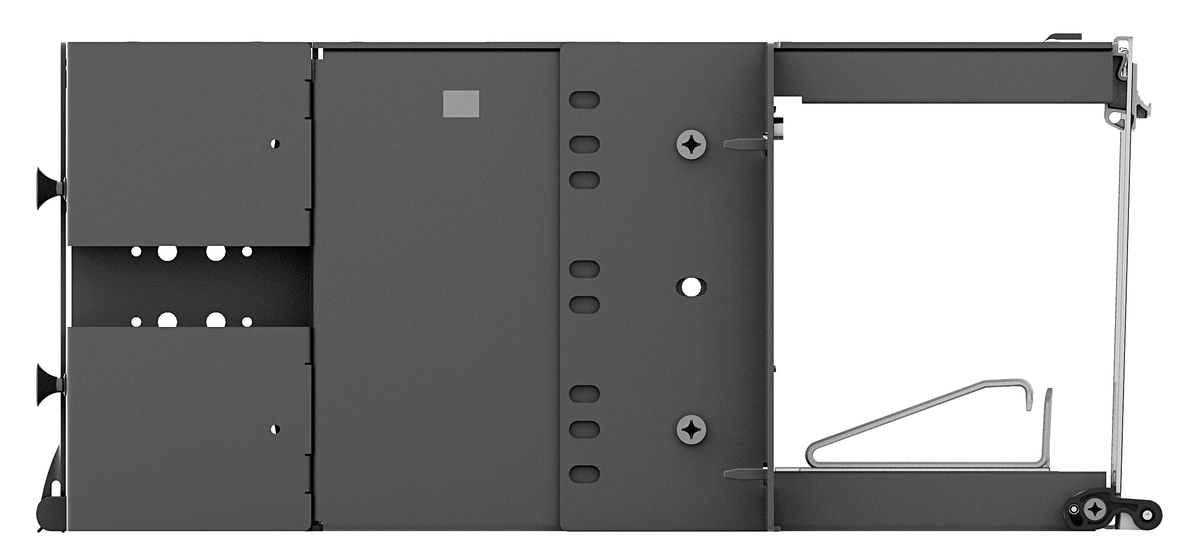

High Density 4U Sliding Fiber Splice Panel, to accommodate a maximum of 192 single fusion splices when using the Splice Wallet® or 128 single fusion splices when using the RoloSplice® splice tray organizers

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Fiber patch/splice panel
Product Series HD

General Specifications

Color Black + Silver gray (front)
Interface, front Unloaded
Rack Type EIA 19 in
Rack Units 4
Shelf Movement Sliding
Total Ports, quantity 0

Dimensions

Height 177.8 mm | 7 in
Width 450.85 mm | 17.75 in
Depth 406.4 mm | 16 in

Material Specifications

Material Type Steel

Environmental Specifications

Safety Standard UL 1863

Packaging and Weights

Packaging quantity 1
Weight, net 5.216 kg | 11.5 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
