760239977 | FACT-3ENG4

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

FACT® NG4 Fiber Chassis, gray with 6 unloaded trays, 3E high, for holding 12 NG4 adapter packs or 6 NG4 MPO modules or 6 NG4 cabled LC/SC modules or 6 NG4 value added modules

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

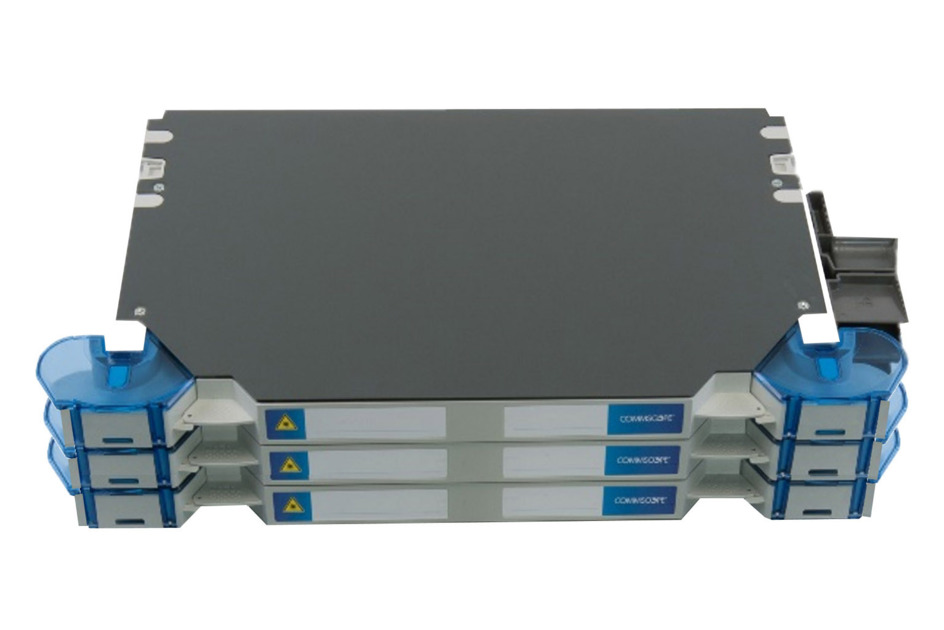

Representative image – actual product may differ from the shown image

Features and Benefits

Designed for use with the all-purpose all-front-access FACT frames and FIST-GR3 frames supporting up to 2,688 LC or 1,344 SC connections in a single frame (FACT-IC frame 2880 LC or 1440 SC)
Reduced installation and maintenance time via the toolless snap-on design supporting both interconnect and cross-connect applications
Flexible customization enabled by 4 chassis types (patch-only, patch-splice, pre-cabled and splice-only) to support all ODF applications
High density through the single FACT element height (1E) being 30% less tall compared to the industry standard panel height (1HU)

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber VAM chassis \| Fiber patch chassis
Product Brand	FACT®
Product Series	FACT

General Specifications

Functionality	Multiplexing \| Patching \| Splitting
Application	For use with FACT frames \| Compatible with FIST-GR3-R frames when backplate is used (optional)
Body Style	Symmetrical
Color	Gray
Growth Configuration	Unloaded
Interface, front	Unloaded
Patch Cord Routing	Left sided \| Right sided
Rack Type	FACT \| FIST-GR3
Rack Units	2.1
Shelf Movement	Sliding
Total Ports, quantity	0
Transmission Standards	ETSI EN 300 019-1-3 \| IEC 61300-3-30

Dimensions

Height	92.85 mm \| 3.656 in
Width	524 mm \| 20.63 in
Depth	283 mm \| 11.142 in

Ordering Tree

Click on image to enlarge.

Environmental Specifications

Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-20 °C to +85 °C (-4 °F to +176 °F)
Flammability Rating	UL 94 V-0

Packaging and Weights

Included	Mounting hardware for FACT frame
Packaging quantity	1

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant
UK-ROHS	Compliant
