FGS-MHXP-M/H

Base Product: FGS-MHXP

  • Available in:
  • Asia
  • Australia/New Zealand
  • EMEA
  • Latin America
  • North America

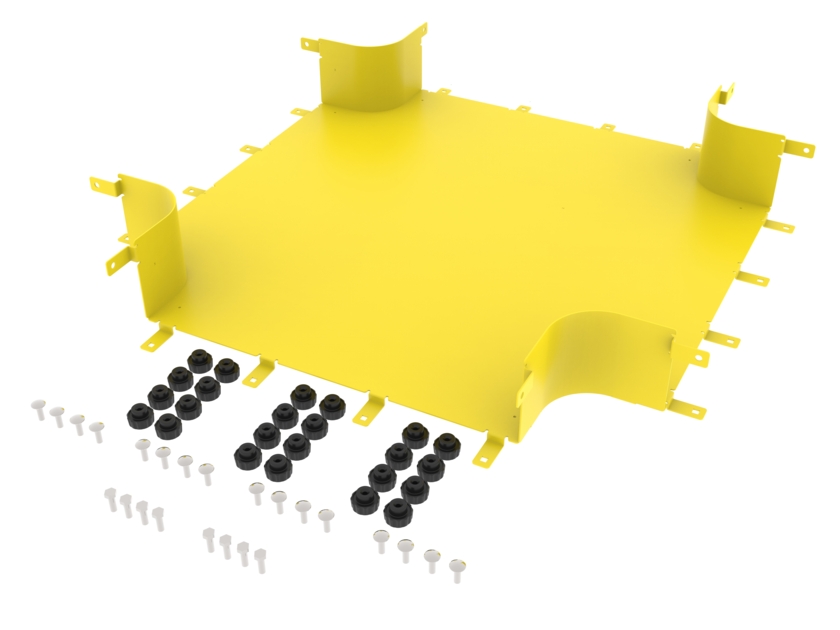

FiberGuide® Horizontal Cross with Dual 4x18in and Dual 4x24in Exits, Yellow

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
FiberGuide Design Pro - hero - portrait
FiberGuide® Design Pro

A configuration tool that allows users to import layouts, design 3D raceways and export detailed drawings and BOMs.
Get access

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio CommScope®
Product Type Cross
Product Brand FiberGuide®
Product Series FGS

General Specifications

Color Yellow
Orientation Horizontal
Section Type Cross section

Dimensions

Height 120 mm | 4.724 in
Width 753 mm | 29.646 in
Length 905 mm | 35.63 in
System Dimensions 102 mm x 457 mm (4 in x 18 in) | 102 mm x 610 mm (4 in x 24 in)

Ordering Tree

Click on image to enlarge.

Material Specifications

Material Type Steel

Environmental Specifications

Safety Standard CSA | UL

Packaging and Weights

Weight, net 3.12 kg | 6.878 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
