FD4S-ACCWMBKT
- Available in:
- North America

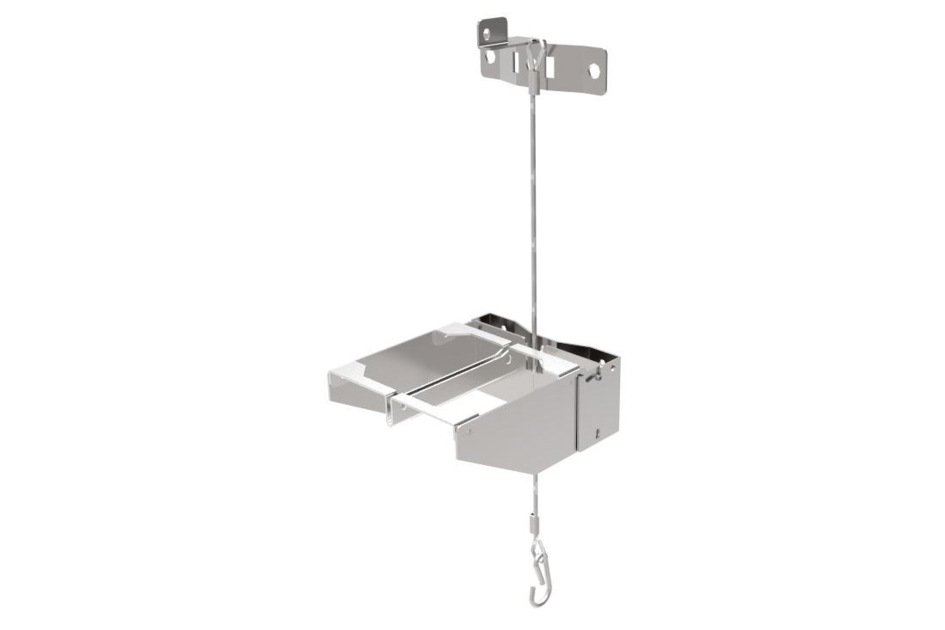

Mounting Bracket for FDH 4000 and UFDH
Specifications
Product classification
| Regional Availability | North America |
| Product Type | Mounting bracket |
| Product Series | FDH 4000 |
General Specifications
| Application | For use with FDH 4000 closures |
| Color | Gray |
| Mounting | Pole | Wall |
Dimensions
| Height | 116.84 mm | 4.6 in |
| Width | 9.3 mm | 0.366 in |
| Depth | 287.02 mm | 11.3 in |
Material Specifications
| Material Type | Steel |
Environmental Specifications
| Qualification Standards | Telcordia GR-3125-CORE |
Product classification
| Regional Availability | North America |
| Product Type | Mounting bracket |
| Product Series | FDH 4000 |
General Specifications
| Application | For use with FDH 4000 closures |
| Color | Gray |
| Mounting | Pole | Wall |
Dimensions
| Height | 116.84 mm | 4.6 in |
| Width | 9.3 mm | 0.366 in |
| Depth | 287.02 mm | 11.3 in |
Material Specifications
| Material Type | Steel |
Environmental Specifications
| Qualification Standards | Telcordia GR-3125-CORE |
