760255092 | PPL-SP-24LC-SM-PT-BEU-ANT

Base Product: PROPEL-SPLICE-CASSETTES

  • Available in:
  • Europe

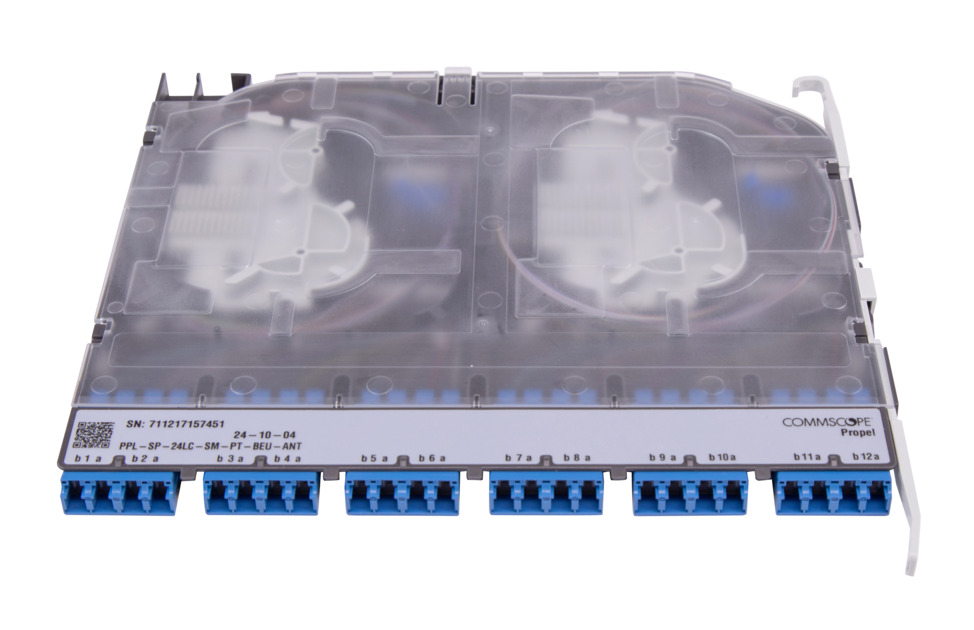

Propel Singlemode Splice Cassette, 24LC/UPC with internal shutters, 250 µm OS2 single fiber pigtails, Method B Enhanced ULL, ANT Splice Protector

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.
Download
Features and Benefits
Recommended for use with 24f subunit cable
  • Can be installed and removed from front or rear of panel
  • This component requires 6 of the 12 lanes on the Propel Panel blade
  • Compatible with either 250 µm or 900 µm incoming fiber (inactive)

Product classification

Regional Availability Europe
Portfolio CommScope®
Product Type Fiber cassette with pigtails
Product Brand Propel
Product Series PPL

General Specifications

Color, front Blue
Interface, front LC/UPC
Interface, rear Stranded pigtail
Polarity Method B Enhanced (ULL)
Shuttered Yes
Total Fibers, quantity 24

Dimensions

Height 11.6 mm | 0.457 in
Width 196 mm | 7.717 in
Depth 187 mm | 7.362 in

Optical Specifications

Fiber Mode Singlemode
Fiber Type G.657.A2
Insertion Loss, maximum 0.25 dB

Environmental Specifications

Qualification Standards IEC 61753-1 | TIA-568.3-D
Safety Standard UL

Packaging and Weights

Included ANT holder | ANT mechanical splice protection
Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ROHS Compliant
UK-ROHS Compliant
