FHD-X01K

Base Product: FHD

Available in:
Australia/New Zealand
Latin America
North America

DLX® Fiber Optic Drop Cable Assembly, DLX to stub, 5 mm cable

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Product Variants

Configure and display product variants of FHD-X01K by selecting options

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Cable Assembly Length m ft Spool Option

Part Number	Cable Assembly Length	UOM	Spool Option
No configured items found.

Features and Benefits

Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments
Hardened drop cables incorporate hardened connector technology that is designed to withstand the rugged outside plant environment
Hardened drop cables simplify installation and maintenance by reducing splicing requirements in the distribution portion of the network

Specifications

Product classification

Regional Availability	Australia/New Zealand \| Latin America \| North America
Product Type	Fiber drop cable assembly
Product Series	FHD
Ordering Note	Drops are automatically coiled 0 to 1,000 ft (305 m)

General Specifications

Cable Type	Dielectric - Round
Connector A, quantity	1
Color, boot A	Black
Color, connector A	Black
Interface, Connector A	Hardened mini-size DLX
Interface, Connector B	Unterminated
Jacket Color	Black
Total Fibers, quantity	1
Transmission Standards	IEC 61753-1 \| IEC 61754-4 \| IEC 61755

Dimensions

Cable Assembly Length Range (m)	1 – 900
Cable Assembly Length Range (ft)	50 – 2000
Cable Outer Diameter	5.0 mm (0.20 in)

Ordering Tree

Click on image to enlarge.

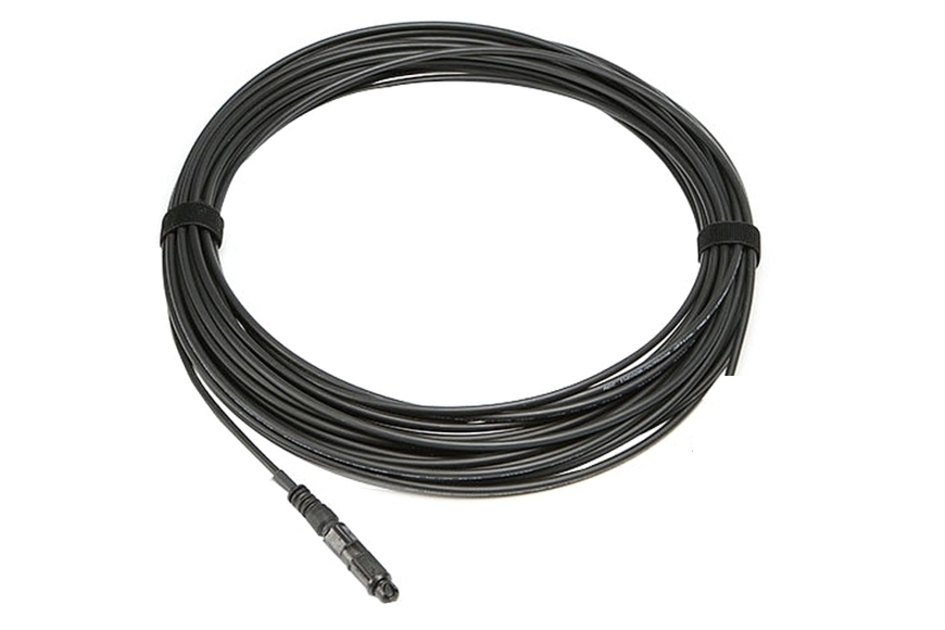

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded	75 mm \| 2.953 in
Minimum Bend Radius, unloaded	25 mm \| 0.984 in
Tensile Load, long term, maximum	300 N \| 67.443 lbf
Tensile Load, short term, maximum	1200 N \| 269.771 lbf
Cable Crush Resistance, maximum	10 N/mm \| 57.101 lbf/in

Optical Specifications

Fiber Mode	Singlemode
Fiber Type	G.657.A2, TeraSPEED®
Insertion Loss, maximum, connector A	0.4 dB
Insertion Loss, typical	0.16 dB
Return Loss, minimum, connector A	65 dB

Environmental Specifications

Operating Temperature	-25 °C to +70 °C (-13 °F to +158 °F)
Operating Temperature Note	Specification applicable to non-terminated bulk fiber cable
Storage Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Environmental Space	Outdoor
Jacket UV Resistance	UV stabilized
Qualification Standards	IEC 60793 \| IEC 60794 \| NEMA type 6, 10 ft waterhead

Packaging and Weights

Cable weight	30 kg/km \| 20.159 lb/kft
Packaging quantity	1

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
