This product was discontinued on: June 1, 2022

For other alternatives, please contact us for more information.

0 Replacement products available

860633153 | OC-ADP-L1-L1-NRCD

Base Product: OC-ADP

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

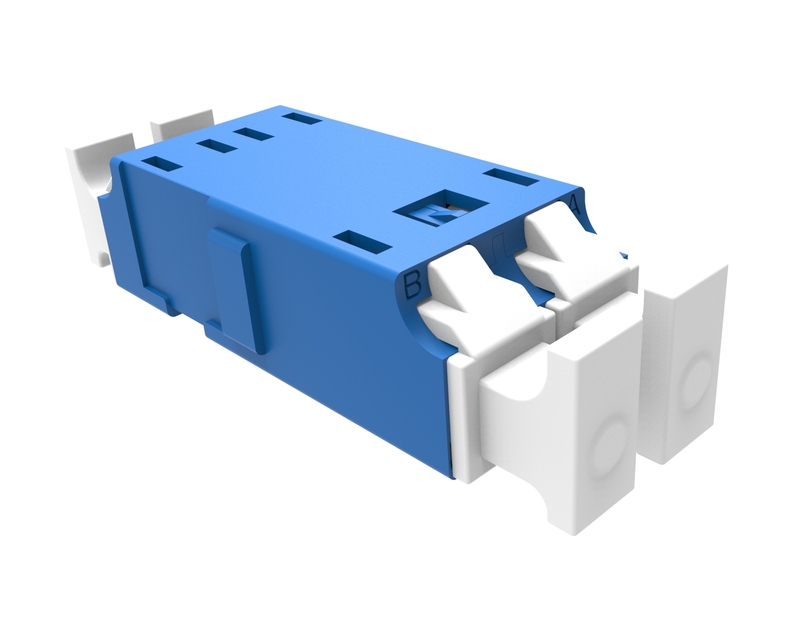

Fiber Optic Duplex Adapter, Singlemode LC/UPC, blue, with reduced flanges

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Features and Benefits

High quality zirconia ceramic split sleeves ensuring high precision alignment, reliability and improved reconnect ability
Translucent easy grip dust cap and integrated mounting clips
High quality one piece housing, no ultrasonic welding

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Fiber adapter
Product Series	OC-ADP

General Specifications

Body Style	Duplex
Color	Blue
Interface	LC/UPC
Mounting	Square flange
Total Ports, quantity	2
Transmission Standards	IEC 60754-1 \| IEC 61300-3-42

Outline Drawing

Click on image to enlarge.

Material Specifications

Alignment Sleeve Material

Ceramic

Mechanical Specifications

Coupling Retention Force

70 N | 15.737 lbf

Optical Specifications

Fiber Mode	Singlemode
Insertion Loss, maximum	0.1 dB

Environmental Specifications

Operating Temperature

-40 °C to +70 °C (-40 °F to +158 °F)

Packaging and Weights

Packaging quantity	1
Packaging Type	Bag

Regulatory Compliance/Certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS	Compliant
UK-ROHS	Compliant
