CX1247-000 | OCM5-SP11Z00S2-70DASIA
- Available in:
- EMEA

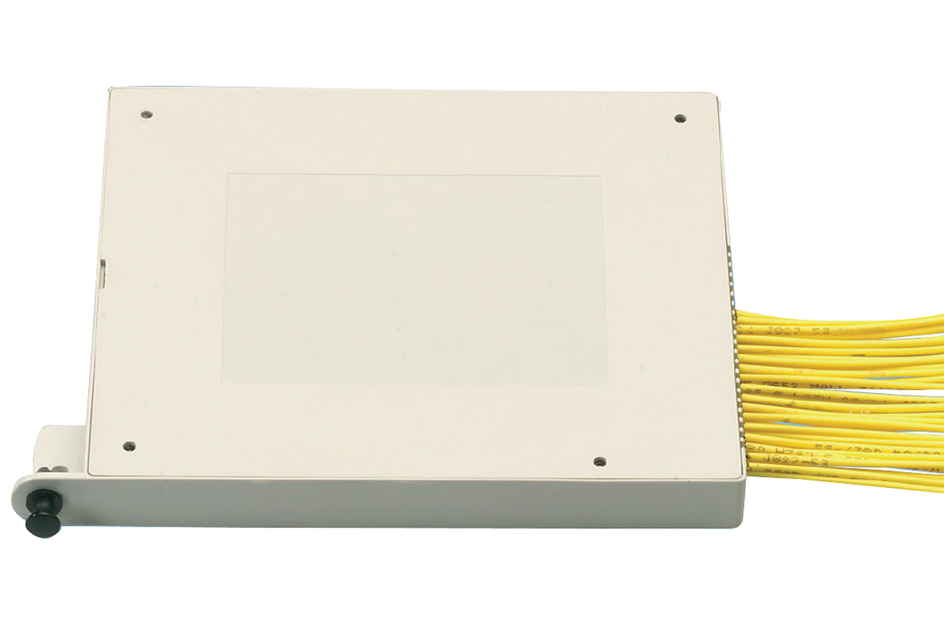

OCM5 Fiber Optic Splitter Module, Planar, one 1x64 Splitter, singlemode, SC/APC, symmetrical split ratio, 7.0 m pigtails
Specifications
Product Classification
| Regional Availability | EMEA |
| Portfolio | CommScope® |
| Product Type | Splitter module |
| Product Series | OCM5 |
General Specifications
| Device Type | Standard VAM |
| Functionality | Splitting |
| Technology Type | Planar lightwave circuit (PLC) |
| Access | Front |
| Application | For use with FIST cabinets |
| Circuits, quantity | 1 |
| Distribution Type | 1 x 64 splitter |
| Interface, Input | SC/APC |
| Interface, Output | SC/APC |
| Split Ratio | Symmetrical |
| Splitter, quantity | 1 |
Dimensions
| Height | 154 mm | 6.063 in |
| Width | 16 mm | 0.63 in |
| Depth | 142 mm | 5.591 in |
| Pigtail Length, Input | 7 m | 22.966 ft |
| Pigtail Length, Output | 7 m | 22.966 ft |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
Product Classification
| Regional Availability | EMEA |
| Portfolio | CommScope® |
| Product Type | Splitter module |
| Product Series | OCM5 |
General Specifications
| Device Type | Standard VAM |
| Functionality | Splitting |
| Technology Type | Planar lightwave circuit (PLC) |
| Access | Front |
| Application | For use with FIST cabinets |
| Circuits, quantity | 1 |
| Distribution Type | 1 x 64 splitter |
| Interface, Input | SC/APC |
| Interface, Output | SC/APC |
| Split Ratio | Symmetrical |
| Splitter, quantity | 1 |
Dimensions
| Height | 154 mm | 6.063 in |
| Width | 16 mm | 0.63 in |
| Depth | 142 mm | 5.591 in |
| Pigtail Length, Input | 7 m | 22.966 ft |
| Pigtail Length, Output | 7 m | 22.966 ft |
Packaging and Weights
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant/Exempted |
|
CHINA-ROHS
|
Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant/Exempted |
