As the need for ever increasing bandwidth requirements continue in the data center, so does the ability to quickly and cost effectively deploy technologies to support these demands.  This is particularly true as more organizations begin to think more carefully about design considerations to utilize 10GbE technologies in their data centers.

Our product management team listened closely to our customers’ needs for cost effective 10G copper solutions that could be cost effectively deployed today while providing an easy path for expansion in the future.  The result is InstaPATCH QUATTRO

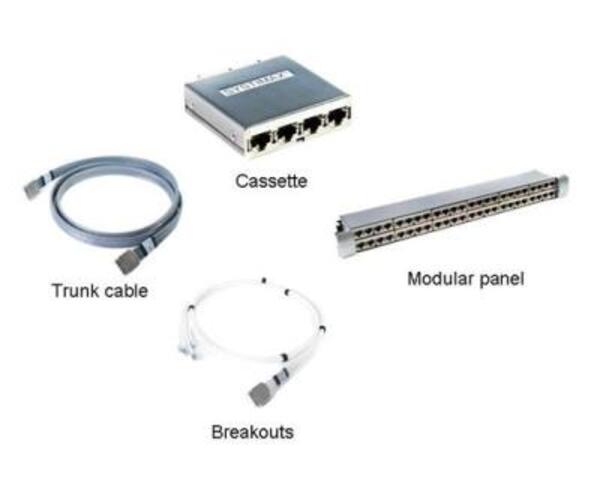

So, what is InstaPATCH QUATTRO? InstaPATCH QUATTRO is a factory preterminated balanced twisted pair copper cabling system.  This cabling system is composed of the components as shown in the following figure. It can integrate four cabling channels together. In each channel, InstaPATCH QUATTRO supports 10GBASE-T up to 100 meters

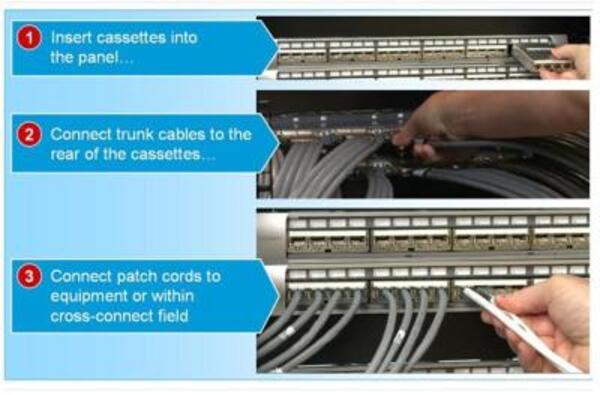

InstaPATCH QUATTRO is easy to work with. Its installation is a snap, and is easy as 1-2-3. InstaPATCH QUATTRO is modular and is easy to scale.

In addition, InstaPATCH QUATTRO provides great flexibility in constructing cabling channel configurations, supporting Ethernet applications, and building network design and architectures. For example, InstaPATCH QUATTRO can be utilized to construct the interconnect configuration that has two connectors per channel, or the cross-connect configuration that has three connectors, and the four connector channel as well. InstaPATCH QUATTRO can provide the seamless migration from 1G to 10G by supporting both Ethernet applications. It naturally provides a physical connectivity to aggregated data rate at 40Gb/s using the link aggregation technology. InstaPATCH QUATTRO can be used to provide network connectivity from server to switch, or switch to switch. It can be applied in IP LAN as well as in converged networks like iSCSI over 10GBASE-T. In one word, InstaPATCH QUATTRO is flexible.

Check out the InstaPATCH QUATTRO solution guide and application guide, and see if InstaPATCH QUATTRO fits your needs.

About the Author

Frank Yang

Frank Yang is manager, Market Strategy Development, for the ISP Fiber business unit of CommScope. Frank leads the market strategy development for data center, central office and enterprise campus markets. Prior to CommScope, Yang worked at Dell and was responsible for server hardware development. He serves as Marketing Chair for Next Generation Enterprise Cabling Subcommittee of Ethernet Alliance. He received a Master of Electrical Engineering from Texas Tech University, and has several patents, articles, white papers and publications under his name. Frank is a frequent speaker at various global and national level opportunities, for example, Data Center Summit, Ethernet Technology Summit, OFC conference, the Ethernet Alliance’s Technology Exploration Forum, Cable Installation and Maintenance (CI&M) Webinars, BICSI conference, etc. Frank holds CloudU, Cisco Certified Network Design Professional (CCDP) and Cisco Certified Network Professional (CCNP) certificates.

See all posts by this author

Comments

2 comments for "Easy And Flexible"
Frank Yang

Hi, William, Thanks for the comment. We developed this solution because customers wanted something like it. InstaPATCH QUATTRO most likely won't fit every customer's needs nor will it be applicable to every cabling project. It is an alternative choice. Frank

William Neilson

Frank, You seem to be making great headway in rendering the skilled CTS craftsmen/craftwomen redundant.
