What is Cascaded Star Architecture?
Cascaded star architecture is a fiber-to-the-home (FTTH) network design that combines elements of centralized and distributed splitting. It utilizes multiple stages of optical splitters to efficiently distribute fiber connections while optimizing network performance and cost.
Key Takeaways
-
Multi-Stage Splitting Design: Cascaded star architecture uses a layered approach with primary and secondary optical splitters to distribute fiber connections more efficiently across a network.
-
Reduced Fiber Requirements: By placing splitters at multiple points, this design can help limit the total amount of fiber needed, which may simplify deployment and lower material usage.
-
Flexible Network Expansion: The architecture supports modular growth, making it easier to scale the network as demand increases or as new areas are added.
-
Cost-Effective Infrastructure: Compared to centralized split models, cascaded star setups can help reduce infrastructure costs by spreading out the splitting process and minimizing the need for extensive cabling.
-
Balanced Performance and Planning: This approach is often chosen in areas where there’s a need to balance fiber density with practical, cost-conscious infrastructure planning.
How Cascaded Star Architecture Works

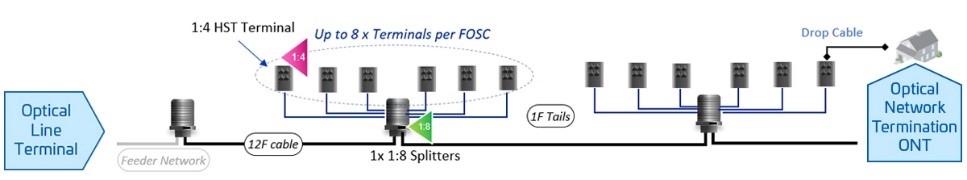

In a cascaded star network, a primary splitter—often a 1x4 or 1x8 splitter—is placed in an outside plant enclosure. This first-stage splitter connects to secondary splitters, such as 1x8 or 1x16 splitters, which then distribute fiber to individual customer premises. This multi-stage approach reduces the amount of fiber required while maintaining flexibility in network expansion.
Comparison to Centralized Split Architecture
Unlike centralized split architecture, which uses a single stage 1x32 splitter housed in a fiber distribution hub (FDH), cascaded star architecture distributes splitting across multiple locations. This approach minimizes fiber usage and infrastructure costs while allowing for more adaptable network scaling.
Advantages of Cascaded Star Architecture
This design offers benefits such as optimized fiber utilization, reduced deployment costs, and greater flexibility for network expansion. It is particularly useful in areas where fiber density needs to be balanced with cost-effective infrastructure planning.
