760248335 | CHD-ES-1U

Base Product: CHD-PANELS

  • Available in:
  • China

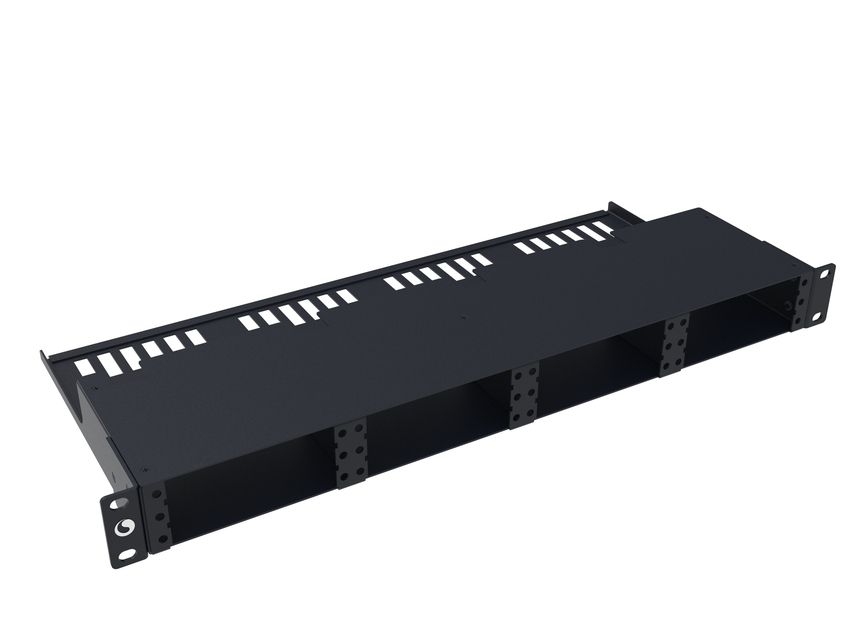

CHD 1U fixed fiber panel, accepts (12) CHD ULL modules, splice cassettes or MPO panels, providing up to 72 duplex LC ports or up to 72 MPO ports, black, High Speed Migration

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability China
Portfolio CommScope®
Product Type Fiber patch panel
Product Series CHD

General Specifications

Application Accepts 12 CHD Universal Modules, or CHD MPO/LC adapter packs
Color Black
Interface, front Unloaded
Rack Type EIA 19 in
Rack Units 1
Shelf Movement Fixed
Total Ports, quantity 0

Dimensions

Height 44.45 mm | 1.75 in
Width 482.6 mm | 19 in
Depth 212.2 mm | 8.354 in

Material Specifications

Finish Powder coated
Material Type Steel

Environmental Specifications

Flammability Rating UL 94 V-0

Packaging and Weights

Packaging quantity 1
Weight, net 1.560 kg | 3.44 lb
