CCA-CORDS

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

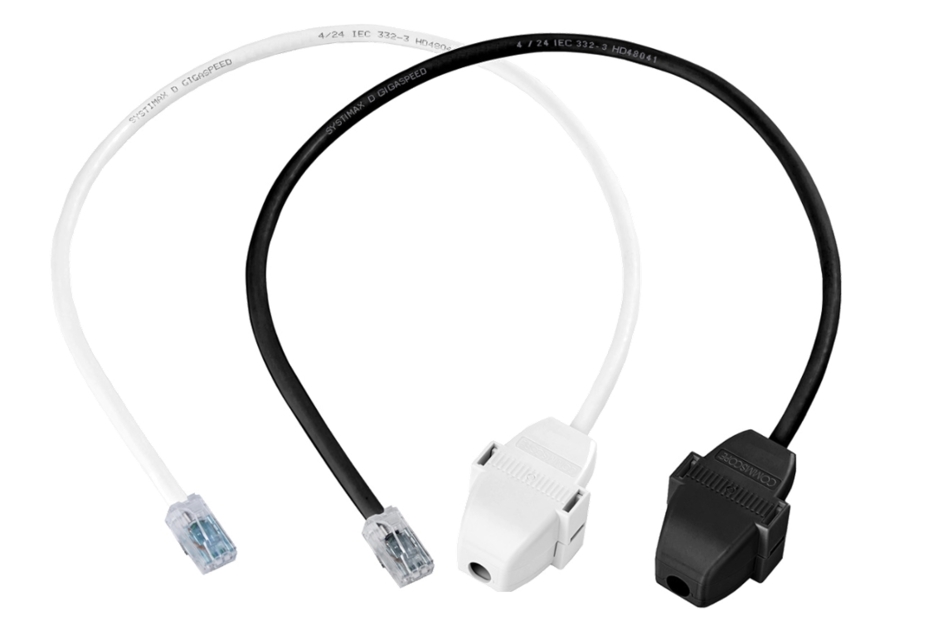

CCA Ceiling connector to RJ45 Cords

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of CCA-CORDS by selecting options

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Twisted pair patch cord

General Specifications

ANSI/TIA Category	6 \| 6A
Cable Type	F/UTP (shielded) \| U/UTP (unshielded)
Conductor Type	Solid
Interface, Connector A	Ceiling connector
Interface, Connector B	RJ45 plug
Pairs, quantity	4
Wiring	T568B

Material Specifications

Contact Plating Material	Precious metals
Material Type	Copper alloy \| High-impact, flame retardant, thermoplastic

Mechanical Specifications

Plug Insertion Life, minimum	750 times
Plug Retention Force, minimum	133 N \| 29.900 lbf

Environmental Specifications

Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature	-40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative Humidity	Up to 95%, non-condensing
Environmental Space	Low Smoke Zero Halogen (LSZH) \| Plenum
Flammability Rating	UL 94 V-0
Safety Standard	ETL \| cETL

Packaging and Weights

Packaging quantity
