760253598 | L-024-DS-5Y-MSUAQ/093/B1

Base Product: L-DS

  • Available in:
  • China

Fiber indoor cable, Low Smoke Zero Halogen Indoor Distribution, 24 fiber single-unit, Multimode OM3, Meters jacket marking, Aqua jacket color

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability China
Portfolio CommScope®
Product Type Fiber indoor cable
Product Series L-DS
Country Specific for China

General Specifications

Cable Type Tight buffer
Jacket Color Aqua
Jacket Marking Meters
Strength Members E-glass yarns
Total Fiber Count 24

Dimensions

Buffer Tube/Subunit Diameter 0.9 mm | 0.035 in
Diameter Over Jacket 8.8 mm | 0.346 in

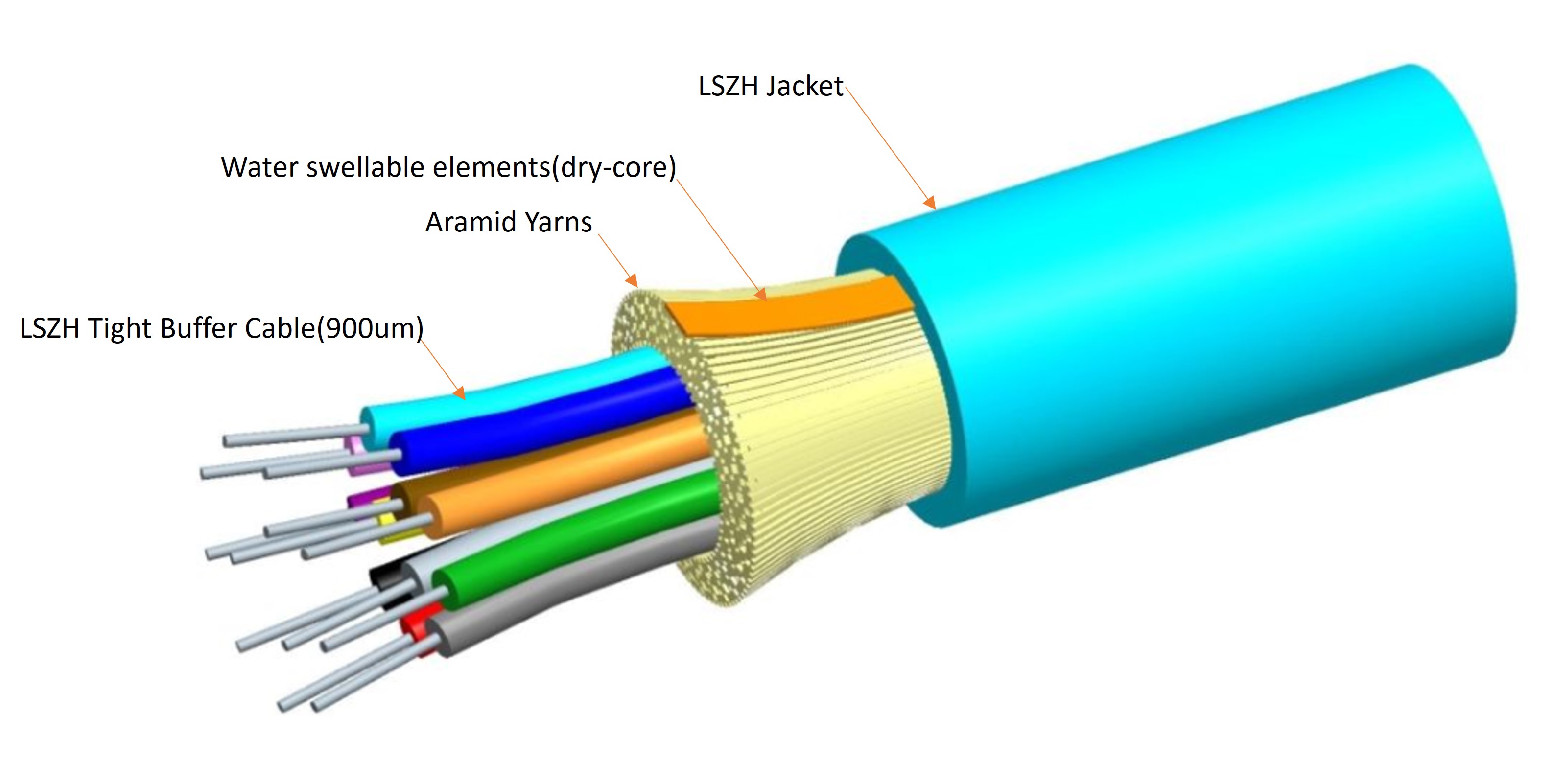

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded 176 mm | 6.929 in
Minimum Bend Radius, unloaded 88 mm | 3.465 in
Tensile Load, long and short term See Sag and Tension tables in Product Documentation section
Tensile Load, long term, maximum 396 N | 89.024 lbf
Tensile Load, short term, maximum 1320 N | 296.748 lbf
Compression 10 N/mm | 57.101 lb/in
Compression Test Method IEC 60794-1-2 E3
Strain See long and short term tensile loads
Strain Test Method IEC 60794-1-2-E1

Optical Specifications

Fiber Type OM3

Optical Specifications, Wavelength Specific

Attenuation, maximum 1.00 dB/km @ 1,300 nm | 3.00 dB/km @ 850 nm

Environmental Specifications

Installation temperature -10 °C to +60 °C (+14 °F to +140 °F)
Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards Telcordia GR-409
Environmental Space Low Smoke Zero Halogen (LSZH)
Flame Test Listing B1
Flame Test Method GB/T 31247

Environmental Test Specifications

Temperature Cycle -20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test Method IEC 60794-1-2 F1

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability China
Portfolio CommScope®
Product Type Fiber indoor cable
Product Series L-DS
Country Specific for China

General Specifications

Cable Type Tight buffer
Jacket Color Aqua
Jacket Marking Meters
Strength Members E-glass yarns
Total Fiber Count 24

Dimensions

Buffer Tube/Subunit Diameter 0.9 mm | 0.035 in
Diameter Over Jacket 8.8 mm | 0.346 in

Mechanical Specifications

Minimum Bend Radius, loaded 176 mm | 6.929 in
Minimum Bend Radius, unloaded 88 mm | 3.465 in
Tensile Load, long and short term See Sag and Tension tables in Product Documentation section
Tensile Load, long term, maximum 396 N | 89.024 lbf
Tensile Load, short term, maximum 1320 N | 296.748 lbf
Compression 10 N/mm | 57.101 lb/in
Compression Test Method IEC 60794-1-2 E3
Strain See long and short term tensile loads
Strain Test Method IEC 60794-1-2-E1

Optical Specifications

Fiber Type OM3

Optical Specifications, Wavelength Specific

Attenuation, maximum 1.00 dB/km @ 1,300 nm | 3.00 dB/km @ 850 nm

Environmental Specifications

Installation temperature -10 °C to +60 °C (+14 °F to +140 °F)
Operating Temperature -20 °C to +70 °C (-4 °F to +158 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Cable Qualification Standards Telcordia GR-409
Environmental Space Low Smoke Zero Halogen (LSZH)
Flame Test Listing B1
Flame Test Method GB/T 31247

Environmental Test Specifications

Temperature Cycle -20 °C to +70 °C (-4 °F to +158 °F)
Temperature Cycle Test Method IEC 60794-1-2 F1
Click on image to enlarge.

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
