EH1457-002
- Available in:
- Asia
- EMEA
- Latin America
- North America

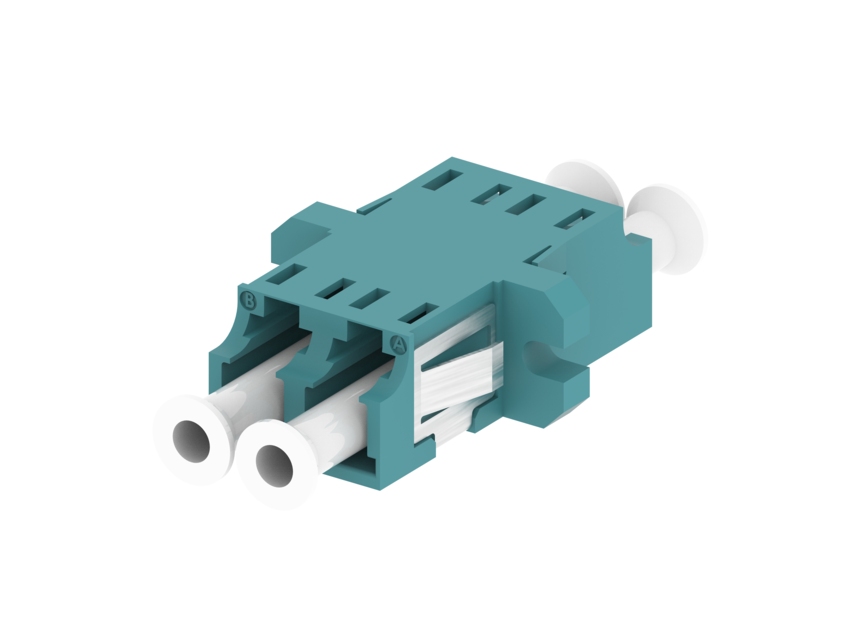

Fiber Optic Duplex Adapter, Multimode LC/UPC, Aqua, with flanges
Specifications
Product Classification
| Regional Availability | Asia | EMEA | Latin America | North America |
| Product Type | Fiber adapter |
General Specifications
| Body Style | Duplex |
| Color | Aqua |
| Interface | LC/UPC |
| Mounting | Flange |
| Shuttered | No |
| Total Ports, quantity | 2 |
| Transmission Standards | IEC 60754-1 | IEC 61300-3-42 |
Dimensions
| Width | 15.4 mm | 0.606 in |
| Length | 29.2 mm | 1.150 in |
Material Specifications
| Alignment Sleeve Material | Zirconia |
Optical Specifications
| Fiber Mode | Multimode |
| Insertion Loss, maximum | 0.2 dB |
Environmental Specifications
| Installation temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Included | Dust caps |
| Packaging Type | Bag |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Product Classification
| Regional Availability | Asia | EMEA | Latin America | North America |
| Product Type | Fiber adapter |
General Specifications
| Body Style | Duplex |
| Color | Aqua |
| Interface | LC/UPC |
| Mounting | Flange |
| Shuttered | No |
| Total Ports, quantity | 2 |
| Transmission Standards | IEC 60754-1 | IEC 61300-3-42 |
Dimensions
| Width | 15.4 mm | 0.606 in |
| Length | 29.2 mm | 1.150 in |
Material Specifications
| Alignment Sleeve Material | Zirconia |
Optical Specifications
| Fiber Mode | Multimode |
| Insertion Loss, maximum | 0.2 dB |
Environmental Specifications
| Installation temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Included | Dust caps |
| Packaging Type | Bag |
Regulatory Compliance/Certifications
| Agency | Classification |
| ROHS | Compliant |
|
CHINA-ROHS
|
Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
