EH1458-002

  • Available in:
  • Asia
  • EMEA
  • Latin America
  • North America

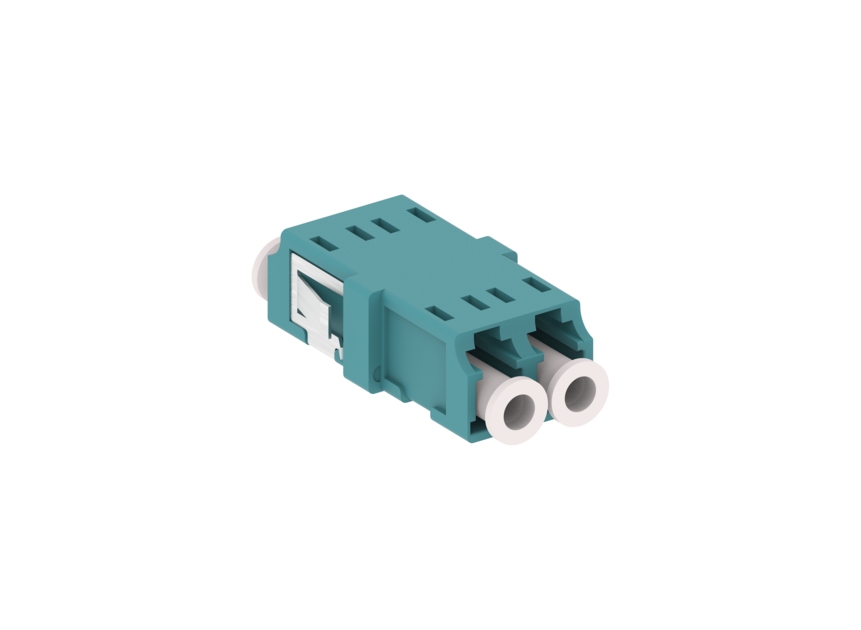

Fiber Optic Duplex Adapter, Multimode LC/UPC, OM3/OM4, aqua, flangeless

Find a Partner
Specifications
Finish making your selections or clear them to view relevant specifications.

Product Classification

Regional Availability Asia | EMEA | Latin America | North America
Product Type Fiber adapter

General Specifications

Body Style Duplex
Color Aqua
Interface LC/UPC
Mounting No flange
Shuttered No
Total Ports, quantity 2
Transmission Standards IEC 60754-1 | IEC 61300-3-42

Dimensions

Width 15.4 mm | 0.606 in
Length 29.2 mm | 1.150 in

Material Specifications

Alignment Sleeve Material Zirconia

Optical Specifications

Fiber Mode Multimode
Insertion Loss, maximum 0.2 dB

Environmental Specifications

Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Flammability Rating UL 94 V-0

Packaging and Weights

Included Dust caps
Packaging Type Bag

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant

Product Classification

Regional Availability Asia | EMEA | Latin America | North America
Product Type Fiber adapter

General Specifications

Body Style Duplex
Color Aqua
Interface LC/UPC
Mounting No flange
Shuttered No
Total Ports, quantity 2
Transmission Standards IEC 60754-1 | IEC 61300-3-42

Dimensions

Width 15.4 mm | 0.606 in
Length 29.2 mm | 1.150 in

Material Specifications

Alignment Sleeve Material Zirconia

Optical Specifications

Fiber Mode Multimode
Insertion Loss, maximum 0.2 dB

Environmental Specifications

Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Flammability Rating UL 94 V-0

Packaging and Weights

Included Dust caps
Packaging Type Bag

Regulatory Compliance/Certifications

Agency Classification
ROHS Compliant
CHINA-ROHS Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
UK-ROHS Compliant
