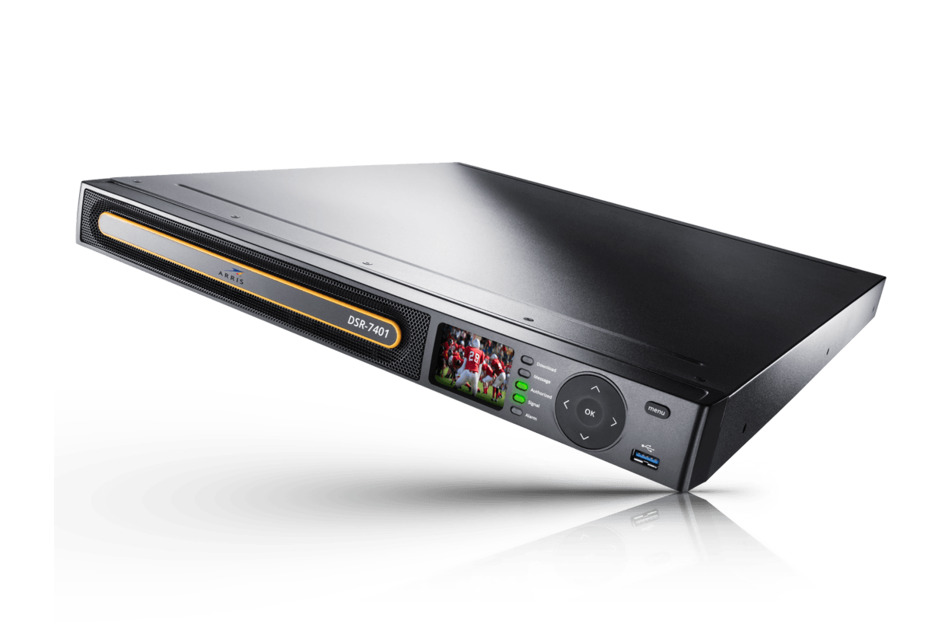

DSR-7401 | DSR-7401 Commercial Integrated Satellite Receiver

High quality cost effective SD commercial integrated satellite receiver

Specifications
Finish making your selections or clear them to view relevant specifications.
View
How to Buy
Features and Benefits
The new DSR-7401 Transcoder IRD from ARRIS provides a high-quality cost effective solution for service continuity as Programmers sunset their satellite SD service distribution.

Utilizing the latest modulation and video compression technologies, the DSR-7401 down-converts and transcodes up to 12 input HD video sources simultaneously across four satellite transponders, all from a single Programmer.
  • Provides up to 12 transcoded SD output services from HD inputs
  • One RU design for rack space savings
  • Low power consumption provides operational cost savings
  • Simultaneously receives transport streams from up to 4 satellite transponders (single programmer)
  • Statistical multiplexed output services for enhanced video quality
  • Advanced DVB-S2x demodulation
  • Front panel confidence monitor
Specifications

General Specifications

Audio Impedance 600 ohm
Audio Output Frequency Response 1.0 dB p-p maximum, 20 Hz to 20 kHz
Compression Formats Dolby AC-3 | HEVC | MPEG-1 Audio Layer II | MPEG-2 | MPEG-4
Contact Closure Type Form C
Cue Tone Outputs, quantity 12
HD Resolution 1080i60 | 1080p23.98 | 720p60
Input Frequency 950–2150 MHz
Input Impedance 75 ohm
Input Type ‘F’ type connector
Peak Audio Level ±20.0 dBu ± 1.0 dB
Rack Units 1
SD Resolution 528x480i | 544x480i | 704x480i | 720x480i
Video Formats HD | HEVC | MPEG-2 | MPEG-4 | SD

Dimensions

Height 44.45 mm | 1.75 in
Width 482.6 mm | 19 in
Depth 632.46 mm | 24.9 in

Electrical Specifications

Isolation, port to port 40 dB

Environmental Specifications

Operating Temperature 0 °C to +50 °C (+32 °F to +122 °F)
Operating Humidity 95%, relative maximum

Packaging and Weights

Weight, gross 7.983 kg | 17.6 lb
