Indoor/Outdoor Fiber Optic Cable, 72-fiber, loose tube, ULSZH, OS2, 2000 m
Specifications
Finish making your selections or clear them to view relevant specifications.
How to Buy
Specifications

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA
Portfolio NETCONNECT®
Product Type Fiber indoor/outdoor cable

General Specifications

Cable Type Loose tube
Fibers per Subunit, quantity 12
Jacket Color Black
Subunit Type Gel-filled
Total Fiber Count 72

Dimensions

Cable Length 2000 m | 6561.68 ft
Diameter Over Jacket 12.7 mm | 0.5 in

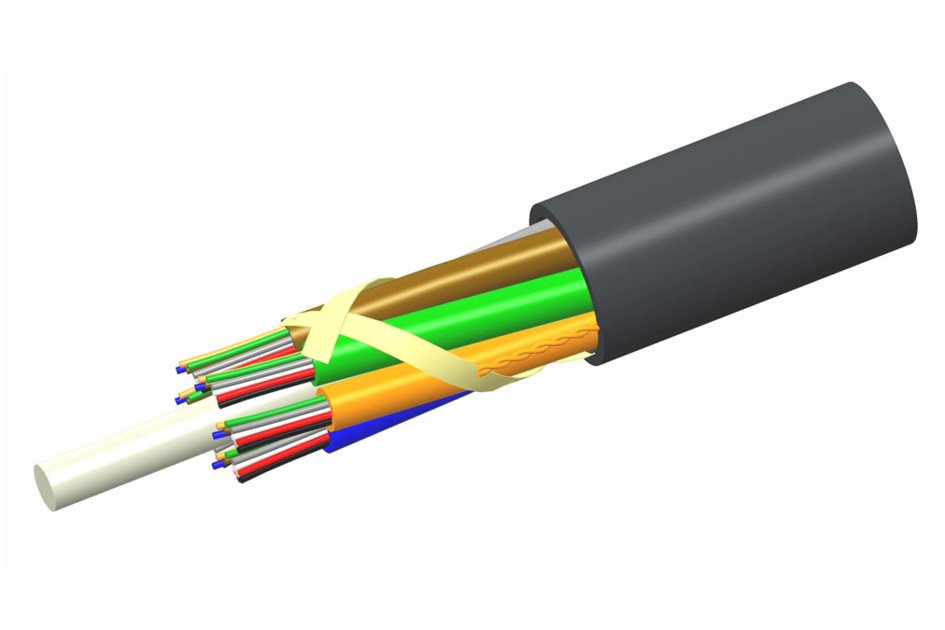

Representative Image

Click on image to enlarge.

Mechanical Specifications

Minimum Bend Radius, loaded 250 mm | 9.843 in
Tensile Load, short term, maximum 2700 N | 606.984 lbf

Optical Specifications

Fiber Type OS2

Optical Specifications, Wavelength Specific

Standards Compliance TIA-492CAAB (OS2)

Environmental Specifications

Installation temperature -5 °C to +50 °C (+23 °F to +122 °F)
Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Storage Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Environmental Space Universal Low Smoke Zero Halogen (ULSZH)

Packaging and Weights

Cable weight 155 kg/km | 104.155 lb/kft

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA
Portfolio NETCONNECT®
Product Type Fiber indoor/outdoor cable

General Specifications

Cable Type Loose tube
Fibers per Subunit, quantity 12
Jacket Color Black
Subunit Type Gel-filled
Total Fiber Count 72

Dimensions

Cable Length 2000 m | 6561.68 ft
Diameter Over Jacket 12.7 mm | 0.5 in

Mechanical Specifications

Minimum Bend Radius, loaded 250 mm | 9.843 in
Tensile Load, short term, maximum 2700 N | 606.984 lbf

Optical Specifications

Fiber Type OS2

Optical Specifications, Wavelength Specific

Standards Compliance TIA-492CAAB (OS2)

Environmental Specifications

Installation temperature -5 °C to +50 °C (+23 °F to +122 °F)
Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Storage Temperature -20 °C to +60 °C (-4 °F to +140 °F)
Environmental Space Universal Low Smoke Zero Halogen (ULSZH)

Packaging and Weights

Cable weight 155 kg/km | 104.155 lb/kft
