O-LA

Base Product

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

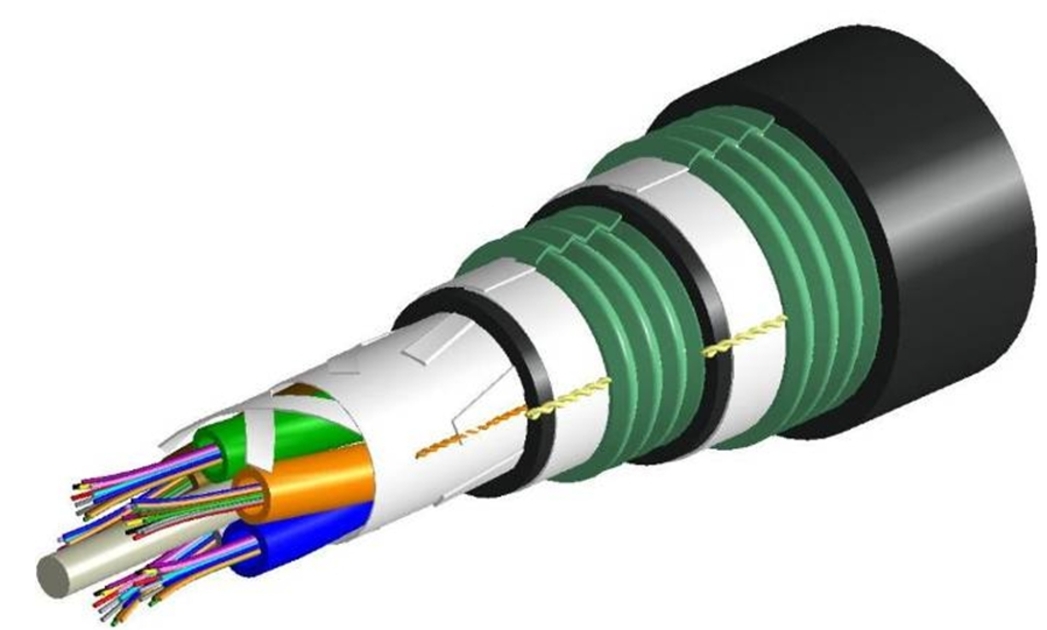

Fiber Optic Cable, Outdoor Arid Core Gel-Filled Tubes, Loose Tube, CST Armored

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of O-LA by selecting options

Product	Jacket Marking	Regional Availability	Portfolio	Product Series	Product Type	Cable Type	Jacket Color	Total Fiber Count	Jacket Material	Fiber Type	Environmental Space	Subunit Type
2120124-2 Fiber Optic Outside Plant Cable, 24-core, ECSS (Electro Chrome Coated Steel) Armored, Loose-tube, Gel-filled, 50/125 µm, OM4, Multimode, Black cable jacket Specifications	Meters	Asia \| EMEA	CommScope®	O-LA	Fiber OSP cable	Loose tube	Black	24	High density polyethylene (HDPE)	OM4 \| LazrSPEED®		Gel-filled
2120124-3 \| O-024-LA-5Y-M06NS/30G/GY Fiber Optic Outdoor 24 Fiber Multi-tube Cable with Corrugated Steel Armoring, OM3, with HDPE Jacket Specifications	Meters	Asia \| India	CommScope®	O-LA	Fiber OSP cable	Loose tube	Black	24	High density polyethylene (HDPE)	OM3		Gel-filled
2120124-4 \| O-024-LA-8M-M06NS/30G/GY Fiber Optic Outside Plant Cable, 24-core, ECSS (Electro Chrome Coated Steel) Armored, Loose-tube, Gel-filled, 9/125 µm, OS2, Singlemode, Black cable jacket Specifications	Meters	Asia \| EMEA	CommScope®	O-LA	Fiber OSP cable	Loose tube	Black	24	High density polyethylene (HDPE)	OS2		Gel-filled
2120148-4 Fiber Optic Outside Plant Cable, 48-core, ECSS (Electro Chrome Coated Steel) Armored, Loose-tube, Gel-filled, 9/125 µm, OS2, Singlemode, Black cable jacket Specifications	Meters	India	CommScope®	O-LA	Fiber OSP cable	Loose tube	Black	48	High density polyethylene (HDPE)	OS2		Gel-filled
2281066-1 Fiber Optic Cable, Outdoor, Armored, Singlemode, G657.A1, black Specifications	Meters	Latin America \| North America	CommScope®	O-LA	Fiber OSP cable	Semi-tight buffer	Black	2		OS2	Low Smoke Zero Halogen (LSZH)	Gel-filled
2281066-2 Fiber Optic Cable, Outdoor, Armored, Singlemode, G657.A2, black Specifications	Meters	Latin America \| North America	CommScope®	O-LA	Fiber OSP cable	Semi-tight buffer	Black	2		G.657.A2 \| TeraSPEED®	Low Smoke Zero Halogen (LSZH)	Gel-filled
2281066-3 Fiber Optic Cable, Outdoor, Armored, Multimode, OM3 BIF, black Specifications	Meters	Latin America \| North America	CommScope®	O-LA	Fiber OSP cable	Semi-tight buffer	Black	2		OM3 \| bend insensitive	Low Smoke Zero Halogen (LSZH)	Gel-filled
2281066-4 Fiber OSP Cable, Outdoor, Armored, Multimode OM2, 1-fiber, Gel-filled, Meters jacket marking, Black jacket color Specifications	Meters	Latin America \| North America	CommScope®	O-LA	Fiber OSP cable	Semi-tight buffer	Black	2		OM2	Low Smoke Zero Halogen (LSZH)	Gel-filled

Previous
1
2
3
4
5
6
7
...7
Next

Features and Benefits

CommScope’s outside plant fiber cables are made with high-performance, standards-compliant materials
The portfolio includes both armored and dielectric designs available with dry or gel-filled tubes
Superior mechanical and optical performance with unmatched stability and quality

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber OSP cable
Product Series	O-LA

General Specifications

Armor Type	Corrugated steel
Cable Type	Loose tube
Construction Type	Armored
Subunit Type	Gel-filled

Ordering Tree

Click on image to enlarge.

Environmental Specifications

Environmental Space

Aerial, lashed | Buried

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	CommScope®
Product Type	Fiber OSP cable
Product Series	O-LA
