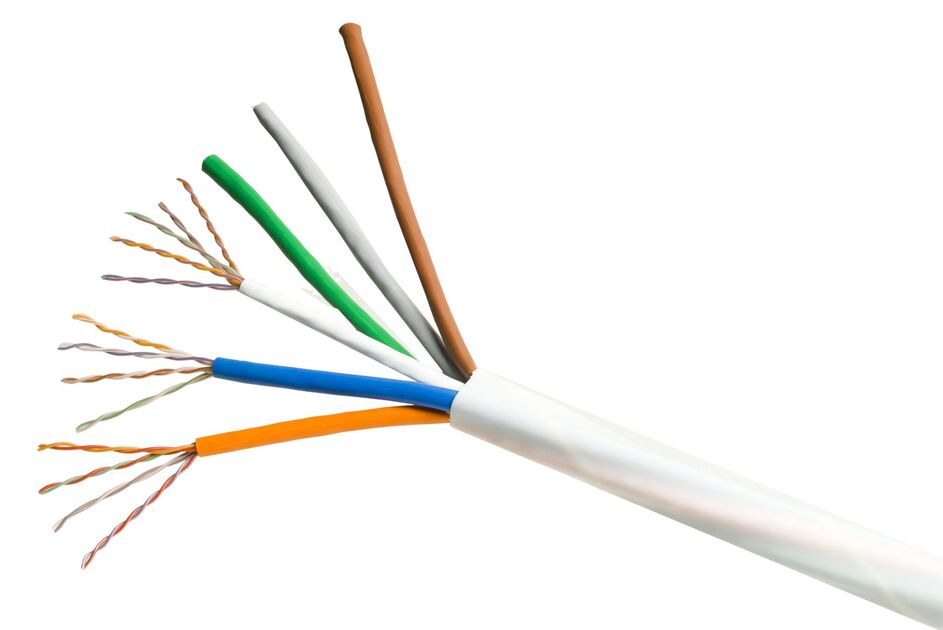

2061B Category 5e Copper Cable

Configure Product Variants

Find a Partner

Specifications

Finish making your selections or clear them to view relevant specifications.

Download

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product Variants Show All Clear

Configure and display product variants of 2061B by selecting options

	Product	Regional Availability	Portfolio	Product Type	Environmental Space	Cable Type	Jacket Color	Product Number	Packaging Type	Pairs, quantity	Jacket Material	Cable Length
	760103044 \| 2061B Cat5e U/UTP WHT 25/24 R1000 2061B Cat5e U/UTP Cable, Plenum, White Jacket, 25 pair count, 1000 ft (305 M) length reel Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Twisted pair cable	Indoor \| Plenum	U/UTP (unshielded)	White	2061B	Reel	25	PVDF	304.8 m \| 1000 ft
	760103051 \| 2061B Cat5e U/UTP WHT 25/24 R4000 2061B Cat5e U/UTP Cable, Plenum, White Jacket, 25 pair count, 4000 ft (1220 M) length reel Specifications	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America	CommScope®	Twisted pair cable	Indoor \| Plenum	U/UTP (unshielded)	White	2061B	Reel	25	PVDF	1219.2 m \| 4000 ft

Specifications

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Twisted pair cable

General Specifications

Product Number	2061B
ANSI/TIA Category	5e
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Transmission Standards	ANSI/TIA-568.2-D \| CENELEC EN 50288-3-1 \| ISO/IEC 11801 Class D

Environmental Specifications

Environmental Space	Indoor \| Plenum
Fire Safety Listing	CMP \| FT6
Flame Test Method	CMP/FT6 \| NFPA 262 \| UL 444 \| UL 910
Safety Standard	UL444
Smoke Test Method	CMP/FT6 \| NFPA 262

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Twisted pair cable

General Specifications

Product Number	2061B
ANSI/TIA Category	5e
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Transmission Standards	ANSI/TIA-568.2-D \| CENELEC EN 50288-3-1 \| ISO/IEC 11801 Class D

Environmental Specifications

Environmental Space	Indoor \| Plenum
Fire Safety Listing	CMP \| FT6
Flame Test Method	CMP/FT6 \| NFPA 262 \| UL 444 \| UL 910
Safety Standard	UL444
Smoke Test Method	CMP/FT6 \| NFPA 262
