APEX1000 | APEX1000 All-Purpose Edge QAM

All-Purpose Edge QAM that supports up to 48 QAM channels (1 RU chassis)

Specifications
Finish making your selections or clear them to view relevant specifications.
View
How to Buy
APEX 1000
Features and Benefits

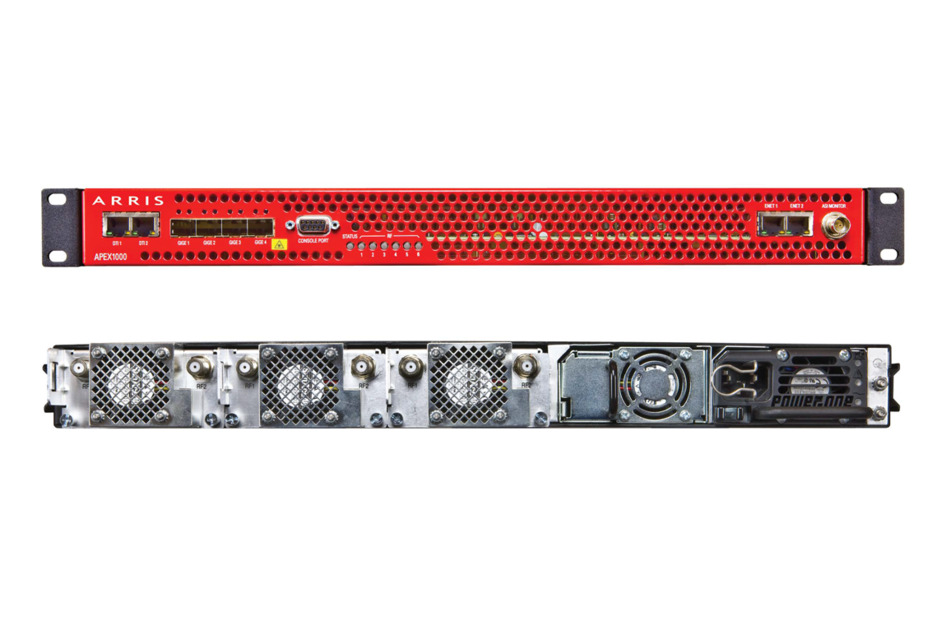

The APEX1000, our next-generation all-purpose edge QAM, provides flexibility, high-availability, high-QAM density, MediaCipher® encryption, and low power in an extremely cost-effective 1 RU platform.

Up to three removable and hot-swappable QAM modules can be installed in the chassis. Each module provides two RF ports; each port supports up to eight QAM channels. All of the 48 available QAM channels can be used for video on demand (VOD), switched digital video (SDV), broadcast services or DOCSIS high-speed data (through support for the M-CMTS architecture).
  • Features a 1 RU chassis that supports up to 48 DRFI-compliant QAM channels and three removable and hot-swappable QAM modules per chassis (two block upconverted RF ports per QAM module)
  • Offers QAM modules available in 2x4 configuration (up to four QAM channels per port), 2x8 configuration (up to eight QAM channels per port) and a QAM module software upgrade to field-convert a 2x4 module to a 2x8 module
  • Delivers extremely low power consumption
  • Provides four GigE interfaces (SFP slots) with support for IGMPv3 and transport stream redundancy
  • Supports up to two, dual hot-swappable, redundant load-sharing power supplies (system can operate with either one or two); supports two AC, two DC or one AC and one DC
Specifications

General Specifications

Carrier Frequency Step Size 250 kHz
Center Frequency Range 57–999 MHz (2x4 and 2x8 modules), 69–999 MHz (4x4 module)
Hot Swappable Yes
IGMPv3 Supported
Input Impedance 75 ohm
Load Sharing Yes
MPEG Data Receive only (GbE)
Optical SFP+ Support 850, 1310, 15xx nm
Physical Ports Four SFP slots, Two RJ45 Ethernet
Power Supplies Up to two per chassis
QAM Constellations 256 QAM | 64 QAM
Rack Units 1
RF Level Step Size 0.2 dB
RF Output Level, one active channel, maximum 62 dBmV
RF Output Level, two active channels, maximum 58 dBmV
RF Output Level, four active channels, maximum 54 dBmV
RF Output Level, six active channels, maximum 52 dBmV
RF Output Level, eight active channels, maximum 51 dBmV

Dimensions

Height 43.18 mm | 1.7 in
Width 632.46 mm | 24.9 in
Depth 482.6 mm | 19 in

Electrical Specifications

Power Consumption, typical 192 W W
Power Supply Range, ac 100–240 V
Power Supply Range, dc –40 to –75 V

Environmental Specifications

Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity 5%–95%

Packaging and Weights

Weight, gross 10.433 kg | 23 lb

General Specifications

Carrier Frequency Step Size 250 kHz
Center Frequency Range 57–999 MHz (2x4 and 2x8 modules), 69–999 MHz (4x4 module)
Hot Swappable Yes
IGMPv3 Supported
Input Impedance 75 ohm
Load Sharing Yes
MPEG Data Receive only (GbE)
Optical SFP+ Support 850, 1310, 15xx nm
Physical Ports Four SFP slots, Two RJ45 Ethernet
Power Supplies Up to two per chassis
QAM Constellations 256 QAM | 64 QAM
Rack Units 1
RF Level Step Size 0.2 dB
RF Output Level, one active channel, maximum 62 dBmV
RF Output Level, two active channels, maximum 58 dBmV
RF Output Level, four active channels, maximum 54 dBmV
RF Output Level, six active channels, maximum 52 dBmV
RF Output Level, eight active channels, maximum 51 dBmV

Dimensions

Height 43.18 mm | 1.7 in
Width 632.46 mm | 24.9 in
Depth 482.6 mm | 19 in

Electrical Specifications

Power Consumption, typical 192 W W
Power Supply Range, ac 100–240 V
Power Supply Range, dc –40 to –75 V

Environmental Specifications

Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity 5%–95%

Packaging and Weights

Weight, gross 10.433 kg | 23 lb
