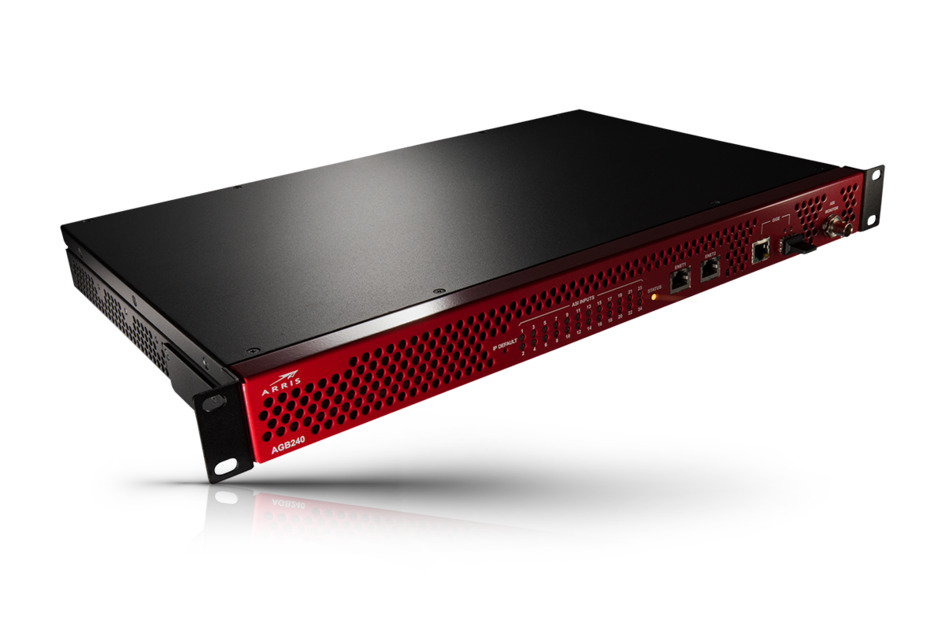

AGB240 | AGB240 ASI to Gigabit Ethernet Bridge

ASI to Gigabit Ethernet Bridge

Specifications
Finish making your selections or clear them to view relevant specifications.
View
How to Buy
Features and Benefits
The AGB240 ASI to Gigabit Ethernet (GigE) Bridge enables service providers to cost-effectively migrate legacy ASI video equipment to IP networks in headend environments.

AGB240 delivers highly reliable bridging of traffic from ASI video service outputs in legacy equipment, such as satellite receivers (IRDs), encoders and Cherrypickers®, to a common GigE IP backbone or transport network. This simple, stand-alone solution also provides significant power savings to service providers by using 90 percent less power than alternative solutions.
  • Maps up to 24 MPEG-2 transport streams from ASI to IP
  • Delivers 931Mbps aggregate bridge bandwidth
  • Uses less than 20W maximum power draw
  • Mounts in 1 RU
  • Provides 24 ASI input ports
Specifications

General Specifications

Aggregate Bridge Bandwidth 931 Mb/s
Aggregate Ethernet Payload Output 931 Mb/s
ASI Input Ports, quantity 24
Coax Cable Length 304.8 m | 1000 ft
Data MTS bit-rate 192 kb/s to 213.73 Mb/s
Input Impedance 75 ohm
Latency 100 μs
Video/Audio MTS Bit-rate Range 192 kb/s to 213.73 Mb/s

Dimensions

Width 482.6 mm | 19 in
Depth 323.85 mm | 12.75 in

Electrical Specifications

Power Consumption, maximum 20 W
Power Supply, ac 90–264 V

Environmental Specifications

Operating Temperature 0 °C to +50 °C (+32 °F to +122 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Operating Humidity 5%–95%
Operating Altitude –200 feet to 10,000 feet AMSL
Standards Compliance C-Tick Mark | CB Scheme Certificate | CISPR 22 Class A Emissions | Class A Emissions | EN 55022:2006/A1 | EN 60950-1 (Second Edition) | EN55024 (Immunity) | FCC Part 15 Class A | ICES-003 Class A | IEC 60950-1 Second Edition | UL Listed to UL 60950-1 Second Edition | UL-AR / S-Mark

Packaging and Weights

Weight, with mounting hardware 2.722 kg | 6 lb

General Specifications

Aggregate Bridge Bandwidth 931 Mb/s
Aggregate Ethernet Payload Output 931 Mb/s
ASI Input Ports, quantity 24
Coax Cable Length 304.8 m | 1000 ft
Data MTS bit-rate 192 kb/s to 213.73 Mb/s
Input Impedance 75 ohm
Latency 100 μs
Video/Audio MTS Bit-rate Range 192 kb/s to 213.73 Mb/s

Dimensions

Width 482.6 mm | 19 in
Depth 323.85 mm | 12.75 in

Electrical Specifications

Power Consumption, maximum 20 W
Power Supply, ac 90–264 V

Environmental Specifications

Operating Temperature 0 °C to +50 °C (+32 °F to +122 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Operating Humidity 5%–95%
Operating Altitude –200 feet to 10,000 feet AMSL
Standards Compliance C-Tick Mark | CB Scheme Certificate | CISPR 22 Class A Emissions | Class A Emissions | EN 55022:2006/A1 | EN 60950-1 (Second Edition) | EN55024 (Immunity) | FCC Part 15 Class A | ICES-003 Class A | IEC 60950-1 Second Edition | UL Listed to UL 60950-1 Second Edition | UL-AR / S-Mark

Packaging and Weights

Weight, with mounting hardware 2.722 kg | 6 lb
